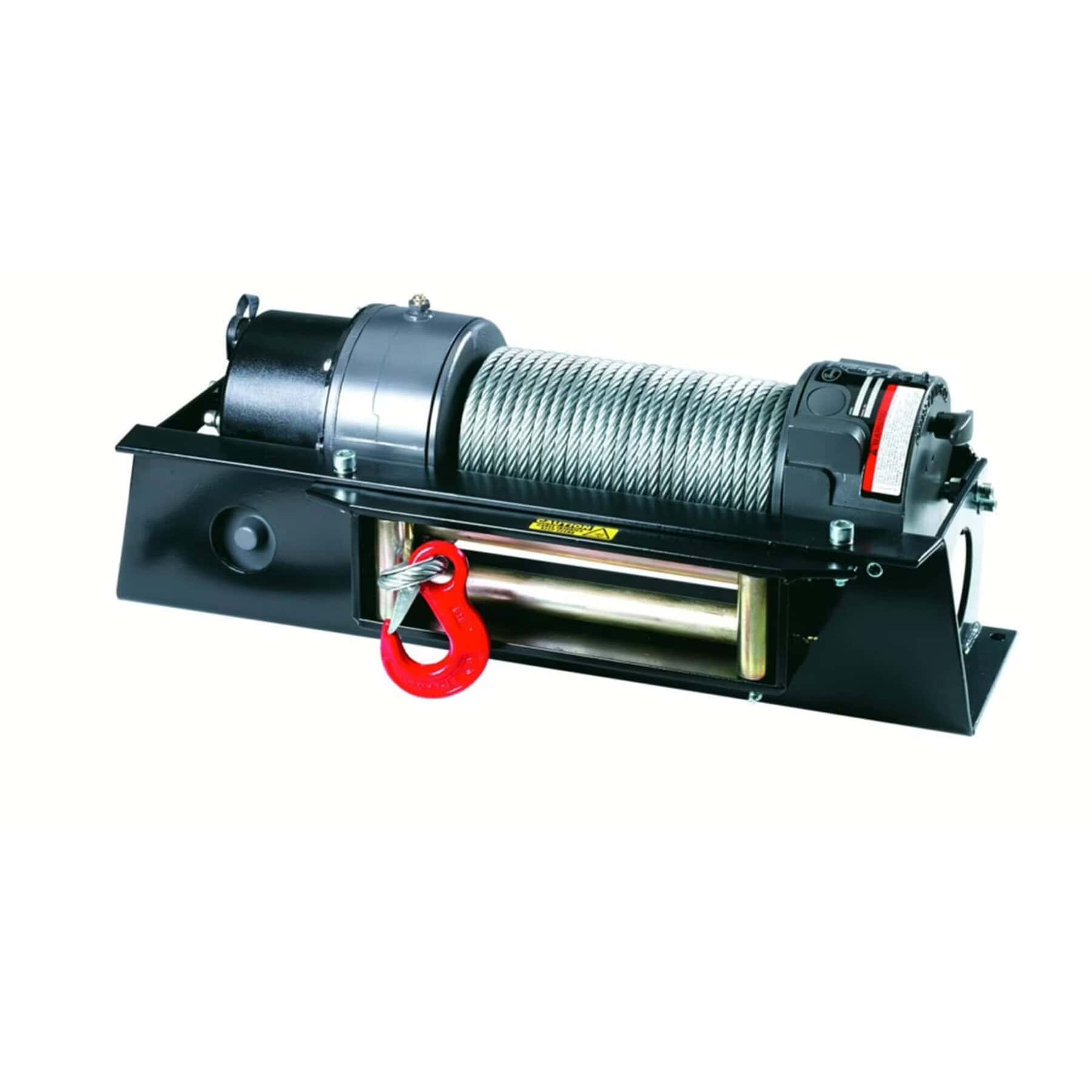

RAMSEY DC200-DCY200

RAMSEY DC200-DCY200

FOR PLANT AND COMMERCIAL RECOVERY

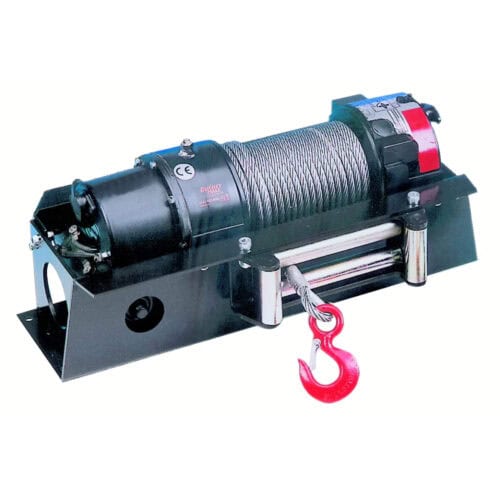

Now replaced by the DC34.9, Ramsey’s heaviest DC series electric winches have been designed to take on the very toughest recovery and plant loading work. With a reputation for giving long life and complete reliability, everything about these rugged machines is of the highest quality – from phosphor bronze wheels and needle roller bearings in the gear box, to the heavy duty roller guides. The standard drum model (DC200) will hold up to 40m x 10mm wire rope, enabling a snatch block to be used, even on semi-trailer applications.

FEATURES INCLUDE

• 3.6 tonne line pull
  Stall rating approximately 6 tonne (BS7901 and DIN 15020 rating 32kN)
• Worm and wheel drive
  Holds load safely without relying on a separate internal brake
• RAM-LOK freespool clutch mechanism
  Spring loaded for positive engagement
• Heavy duty series wound motor
  12v and 24v models available
• Power in/power out
  Fine control ensures load will not overrun
• Low mount feature
  Design allows for low level floor mounting, therefore less vulnerable to damage from equipment being loaded
• Heavy duty wanderlead control
  Industrial quality two-button control switch for heavy duty work
• Low amperage draw
  Practical and obtainable at rated line pull
• 12 months warranty
  On parts and service (excluding wire rope)
• Fitting service
  Full or partial fitting can be provided, including load testing and certification

After sales service

Technical advice given on winch fitting and component replacement, plus efficient overnight parts despatch and fast repairs. Factory winch installation available
