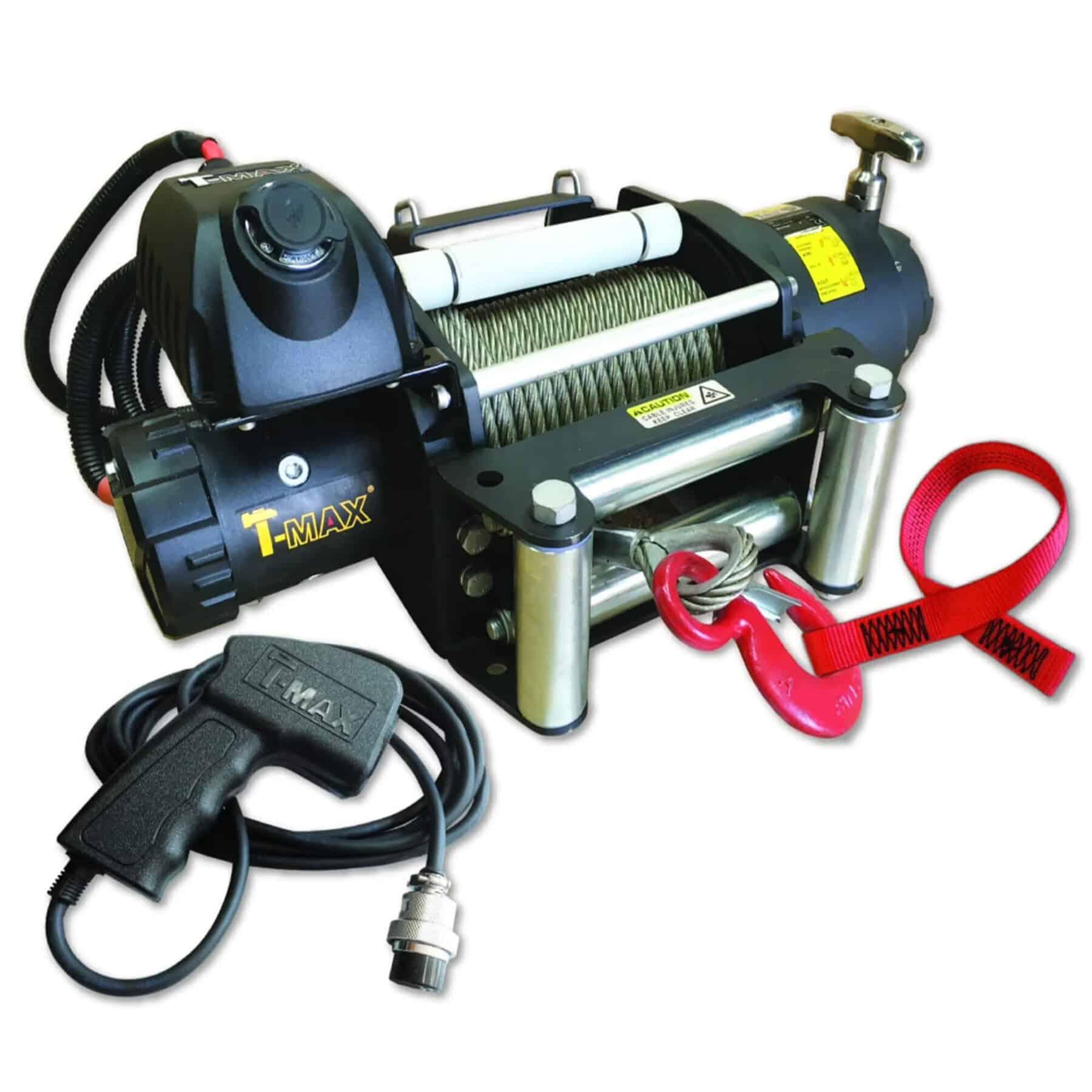

T-MAX DC3500 3.5 Tonne Electric Winch

T-MAX DC3500 3.5 Tonne Electric Winch

T-MAX DC3500 3.5 Tonne 12v or 24v DC Electric Heavy Duty Winch.

3500kg (34.39kN) Line Pull with Standard Drum or Long Drum options.

TYPICAL USES: Commercial Recovery, Plant Moving and Utility Vehicles. Fully compliant with EN14492-1 regulations Power Driven Winches.

The T-MAX DC3500 12v or 24v DC heavy duty electric winch comes complete with, 3.7m wanderlead, roller guides, tension roller, load limiter and 10mm diameter high tensile galvanised wire rope with grade 80 safety latch hook.

Optional extras include; standard or long drum models, mounting plate; wireless IN-OUT control; circuit isolator switch; in line slow burn fuse; heavy duty extension kit for wanderlead; air-shift freespool clutch and emergency stop.

Features include

• 4 Stage Heavy Duty Machined Planetary Gearing
• Providing long life and high mechanical efficiency.
• Series Wound, 12v 4.8hp or 24v 7hp High Torque Motor
• Custom manufactured for extended service life.
• Electronic Load Limiter
• Supplied as standard.
• Freespool Manual Clutch
• Can also be operated by air-shift control.
• 10mm Diameter Wire Rope
• With grade 80 safety hook. A longer drum allows for up to 30m length.
• Secure wire rope anchorage
• Providing full load holding.
• Tension Roller
• Spring loaded to aid rope wrapping.
• Heavy Duty Solenoids
• With silver layer on contacts to reduce heating and extend service life. Pre-wired to accept wireless control, reducing installation time.
• 4 Way Roller Guides
• The horizontal rollers are wide spaced to extend wire rope life.
