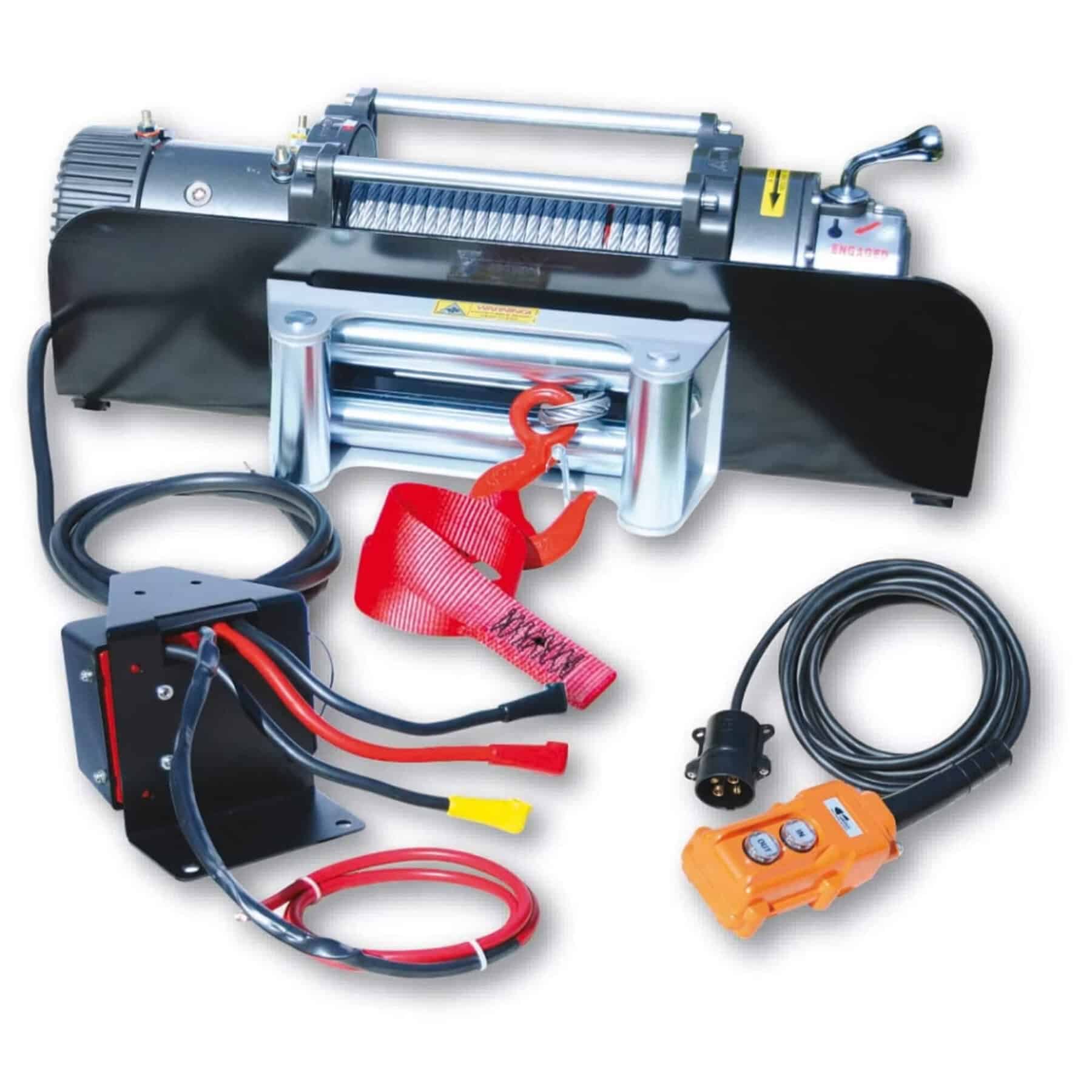

BH DELTA 3200

BH DELTA 3200

12v or 24v DC Electric Recovery Winch 3200kg Line Pull

Light Duty Car Transporters, Trailers, Plant Moving Vehicles with GVW up to 3500kg, Spec-Lifts and 4×4’s. This low profile planetary winch has been developed for light industrial use. It incorporates a large electric motor, ensuring good service life.

BH DELTA 3200 Features include:

• 3200kg line pull (31.4kN)
• EN14492-1 compliant
• Powerful series wound, high torque motor options 12v or 24v
• Optional electronic load limiting device Pre wired to solenoid for safer winch operation
• 3 stage planetary gearing Providing high mechanical efficiency
• Automatic braking action in drum
• Freespool clutch lever Easy to operate lever for disengaging drum
• Power in / power out Fine control ensures load will not overrun
• 4 way roller guides and mounting plate
• Heavy duty 4.5m wanderlead control Two button supplied a standard, alternative lengths and additional emergency stop button available on request
• High tensile wire rope positively secured to drum Using fixed plug and grub screw engagement

SPECIFICATIONS for the BH DELTA 3200:

• Rated Line Pull (single line): Maximum recommended working capacity 3,200kgf to comply with EN14492-1. Stall capacity 4300kg.
• Gear Ratio: 216: 1 for either 12v or 24v.
• Motor: High torque series wound 12v (6hp) or 24v (4.7hp).
• Switching: Heavy duty, double acting solenoids can be mounted adjacent to winch or on to the winch tie bars with straps provided. Load Limiting Device Optional, pre-wired and fitted to underside of solenoid pack. Can be calibrated to shut down winch when maximum load limit is reached.
• Wanderlead Control: Commercial heavy duty type with 2 operating buttons and 4.5m cable. Other lengths and additional emergency stop button versions available on request.
• Roller Guides: Heavy duty, 4 way commercial type with greaseways.
• Wire Rope: 8mm diameter galvanised 2160N/mm² grade, 6 x 36 wire core compact construction with 65.6kN minimum breaking strain. 23m maximum length.
• Freespooling: Lever on gear housing to disengage clutch.
• Complete Kit Weight: 40kg.

WARRANTY
Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire ropes are not included under warranty.
