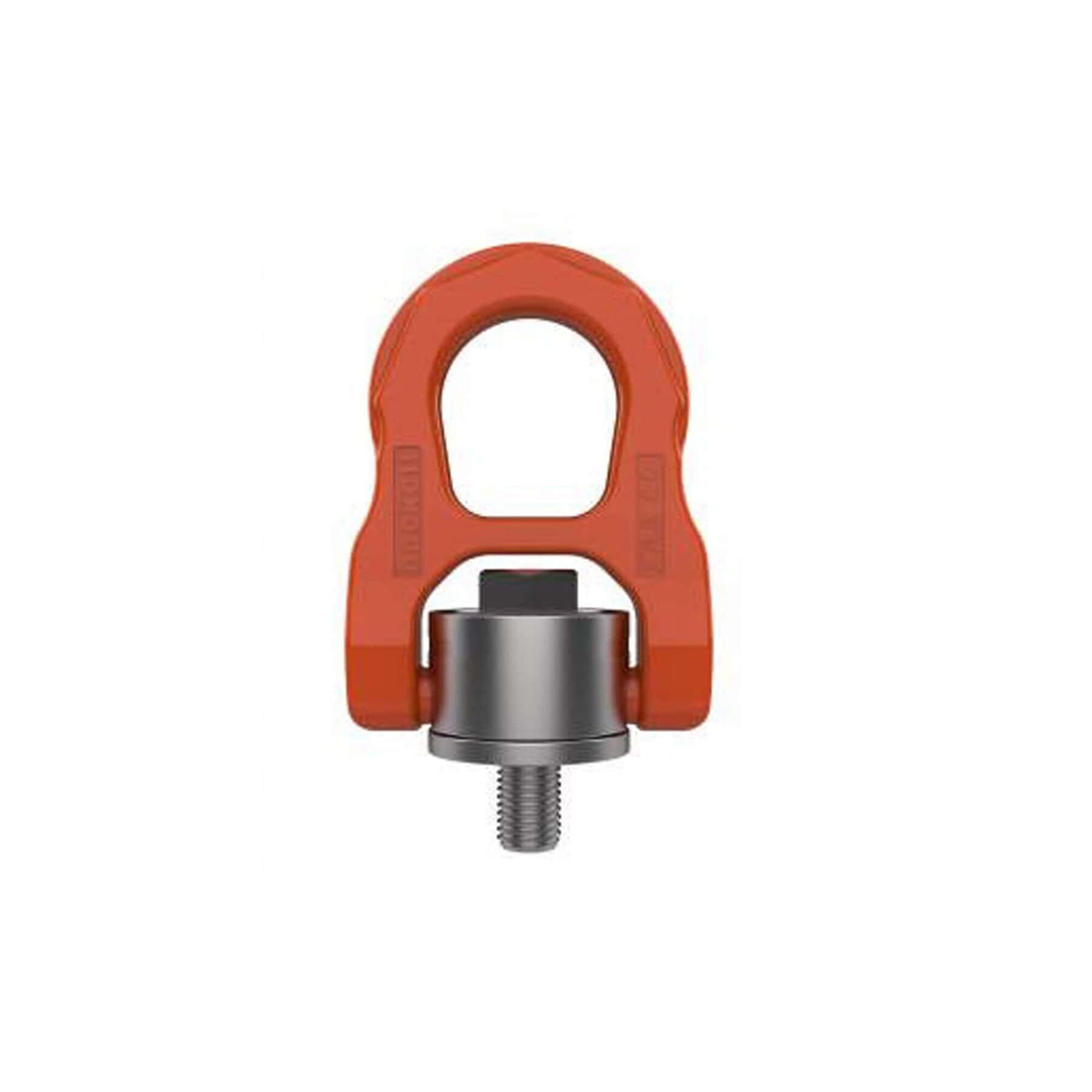

Orange swivel hoist ring with threaded UNC bolt and steel base isolated on white background

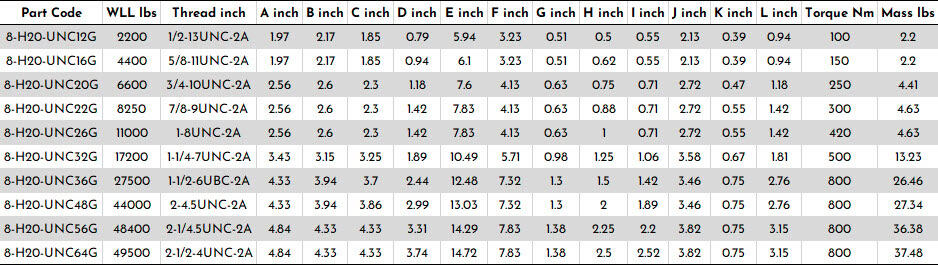

Dimensioned drawing of HA swivel hoist ring with UNC thread showing front and side views and measurements

HA Swivel Hoist Ring (UNC Thread)

Name: HA Swivel Hoist Ring (UNC Thread)
SKU: 8-H20-UNC__G
Price: 50.30 GBP
Availability: InStock

£50.30

Product Code 8-H20-UNC__G Category: Lifting Points, Eyebolts and Eyenuts

Description

The HA swivel hoist ring (UNC) is a bolt-on load attachment product designed for use with loads that incorporate tapped holes. It can rotate 360° around the bolt axis, as well as pivot 180°, allowing the hoist ring to orientate to the appropriate angle of lift, mitigating the risk of damage. The HA swivel hoist ring (UNC) is suitable for both top and side mounting, and maintains its full working load limit even when pulled at 90°.

WLL Range: 2200 lbs to 49500 lbs
Proof Load Test: 2.5 x WLL
Safety Factor: 4 : 1
Temp Range: -40°C to +200°C
Rotation: 360°
Pivot: 180°

Sectors
Construction
Industrial
Oil and Gas
Utilities
Marine
Transportation
Renewables

Specification

Brand

William Hackett Ltd

We have been a UK Distributor for William Hackett Ltd for many years now, we can supply any of your lifting needs. So please give us a call on 01953 889998 or email us at [email protected]. William Hackett have been supply lifting chains for many especially to agriculture. They now have there own range Hack 8 and Hack 10 which we can supply and can easily be purchased direct from our website.
