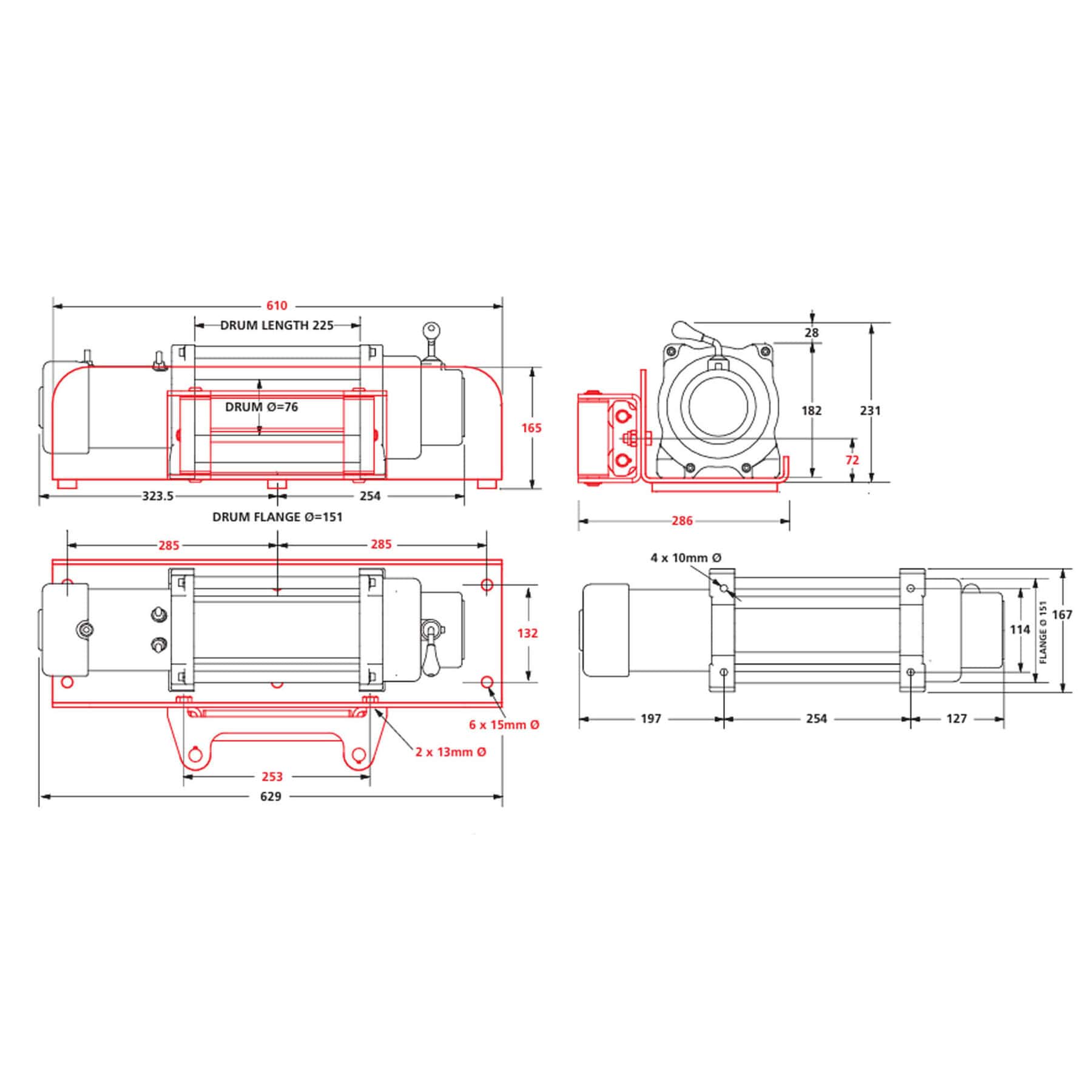

BH DELTA 2250

12v or 24v DC Electric Recovery Winch 2250kg Line Pull

BH Delta Electric Winch. Suitable for light duty car transporters, trailers, plant moving vehicles with GVW up to 3500kg, spec-lifts, and 4×4’s. This low profile planetary winch has been developed for light industrial use. It incorporates a large electric motor, ensuring good service life.

Features include:

• 2250kg line pull (22.07kN)
• EN14492-1 compliant
• Powerful series wound, high torque motor options 12v or 24v
• Optional electronic load limiting device Pre wired to solenoid for safer winch operation
• 3 stage planetary gearing Providing high mechanical efficiency
• Automatic braking action in drum
• Freespool clutch lever Easy to operate lever for disengaging drum
• Power in / power out Fine control ensures load will not overrun
• 4 way roller guides and mounting plate
• Heavy duty 4.5m wanderlead control Two button supplied a standard, alternative lengths and additional emergency stop button available on request
• Wire rope positively secured to drum Using fixed plug and grub screw engagement

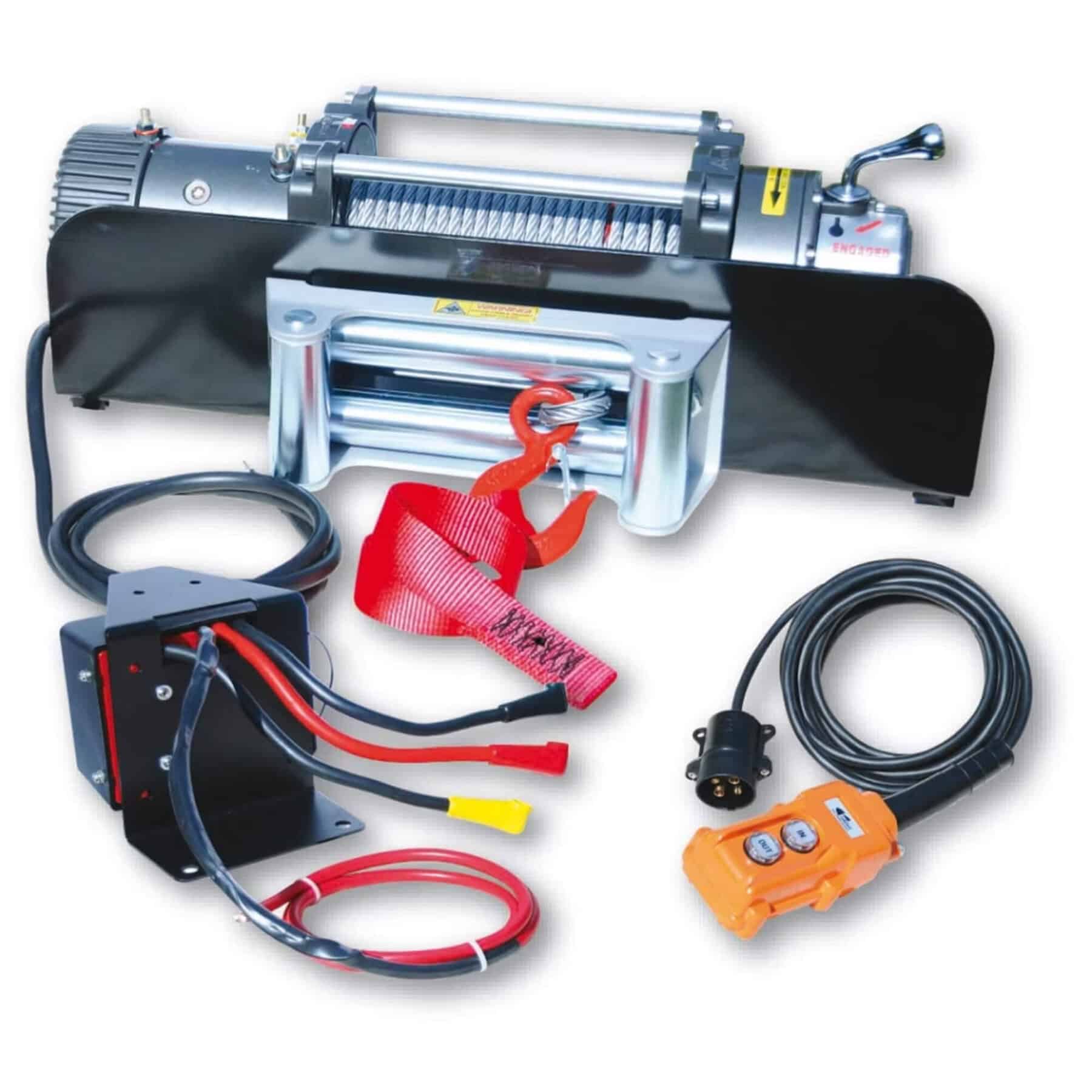

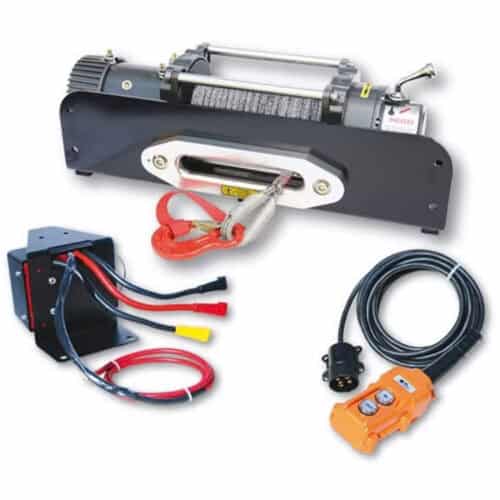

BH DELTA 2250 KIT COMPRISES:

• Electric Winch, 4.5m heavy duty 2 button wanderlead, mounting plate, roller guides and 8mm x 23m galvanised 1960N/mm² grade 6×36 core wire rope with safety latch hook. Total kit weight 40kg.
