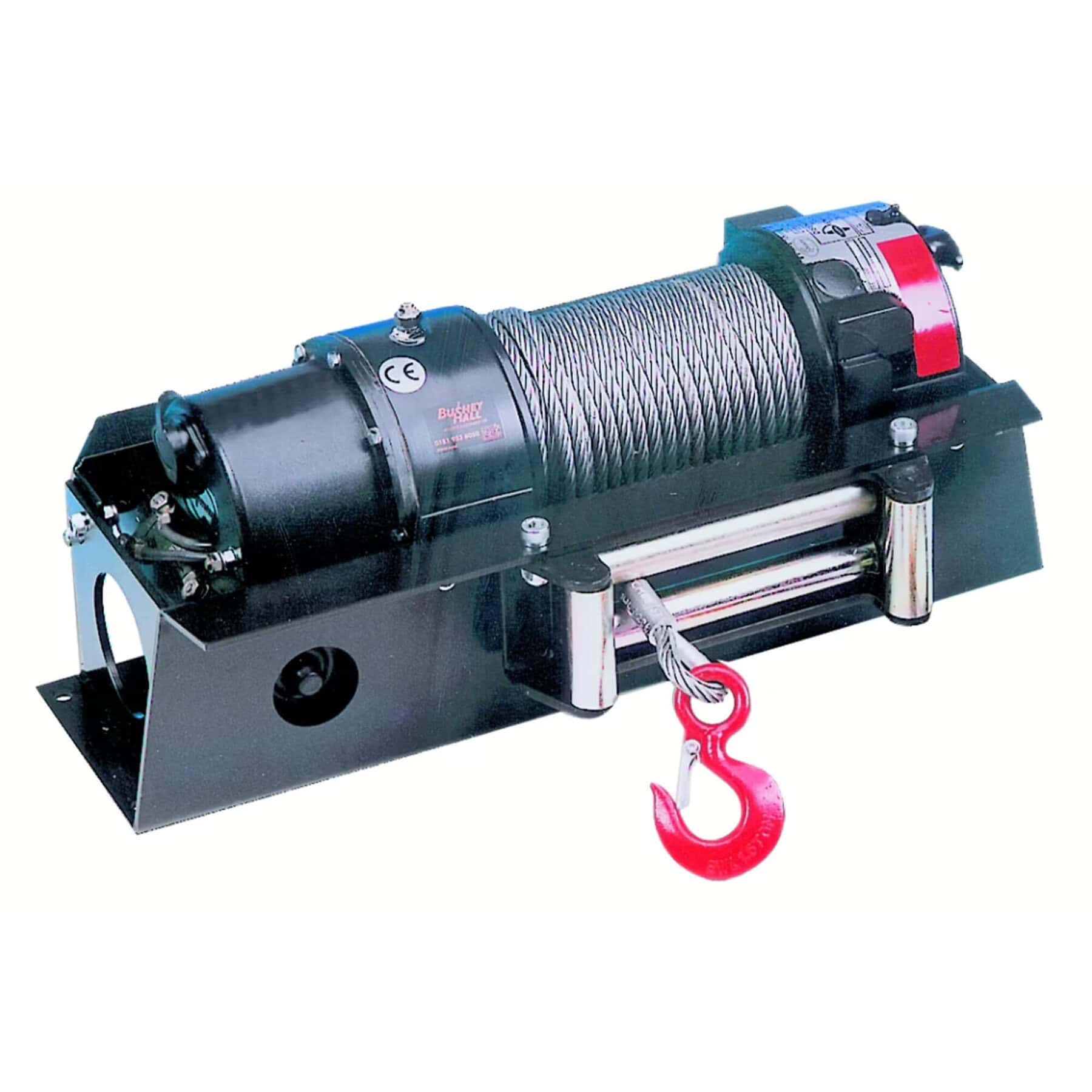

Ramsey RE34.9, 3.56 Tonne DC Electric Winch (12V or 24V)

For General Recovery Work

Heavy duty electric DC winch, designed for general commercial applications. Rugged  construction and low profile design enables  fitting almost flush with, or above, the vehicle  floor as required.

A 90mm x 215mm deep flange drum with rope  anchor wedge ensures good rope life expectancy.

Fully compliant with BS EN14492-1 regulations Power Driven Winches.

FEATURES INCLUDE

• 3558kgf line pull
  Rated line pull of 34.9 kN
• BS EN 14492-1 compliant
• Emergency stop switch & safety solenoid
  Ensures shut down if control solenoid fails to open
• Load limiting switch
  Pre set to provide mechanical overload protection
• Worm & wheel drive
  Holds load safely without relying on a separate internal brake
• RAM-LOK freespool clutch mechanism
  Spring loaded for positive engagement
• Wedge pocket rope anchor on drum
  Major safety benefit – prevents rope release from drum
• 10mm x 30m (1960Nmm2 grade) wire rope
  6 x 36 wire core construction for maximum flexibility
• Heavy duty series wound motor
  12V and 24V models available
• All gearing running in oil bath
• Mounting frame or cradle mount options
• Heavy duty roller guides
  Industrial design for rugged commercial use
• Heavy duty wanderlead control
  Industrial quality two button with 4.5m lead
• Low amperage draw
  Practical and obtainable at rated line pull
• 12 months warranty
  On parts and service (excluding wire rope)
• After sales service
  Technical advice given on winch fitting and component replacement, plus efficient overnight parts despatch and fast repairs.
