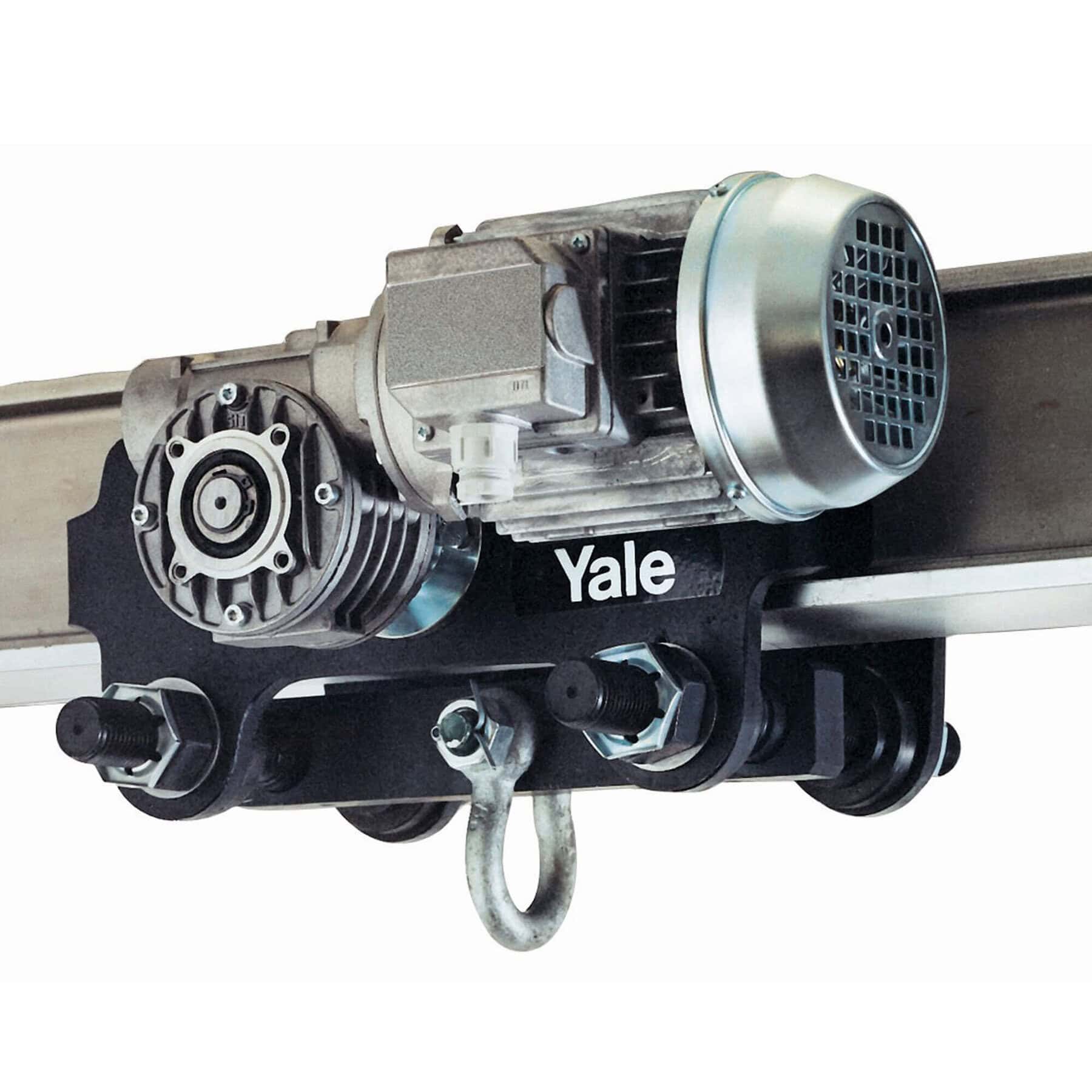

Yale VTE Electric Travel Trolley

1000 – 5000kg



Specially recommended for loads over 1000kgs, for transporting over long distances, and/or for frequent use.

Suitable for almost all hoists with suspension hook, due to Yale’s universal shackle connection.

Travel motor with worm gear transmission ensures smooth start and self braking – a separate motor brake is not required.



Features include:

• Low voltage control 42v

• Operating voltage 400v 3ph 50Hz.

• Motors protected to IP 55 against dust and water jets.

Push-button pendant control IP65.

• Compact, robust frame with low overall height.

• Wheels manufactured from fracture-proof steel.

Smooth running due to machined surfaces and ball

bearing mounting. Cambered wheel profile suitable for

flat and inclined beam profiles.

• Anti-drop and anti tilt devices as standard.

• Easily adjustable to fit a wide range of beam widths

and profiles via due to threaded load bars.

• Rubber buffers available as optional extra.

• Travel limit switches also available.



NOTE: These trolleys are not designed for passenger elevation applications and must not be used for this purpose!

*11 or 11/2.8 m/min travel speed available on request. • Low voltage control c/w 2mtr, 2 button, pendant.

**Prices shown are for range A trolleys. Range B prices are available on request.
