HACK8 Eye Self Locking Hook

HACK8 Eye Self Locking Hook

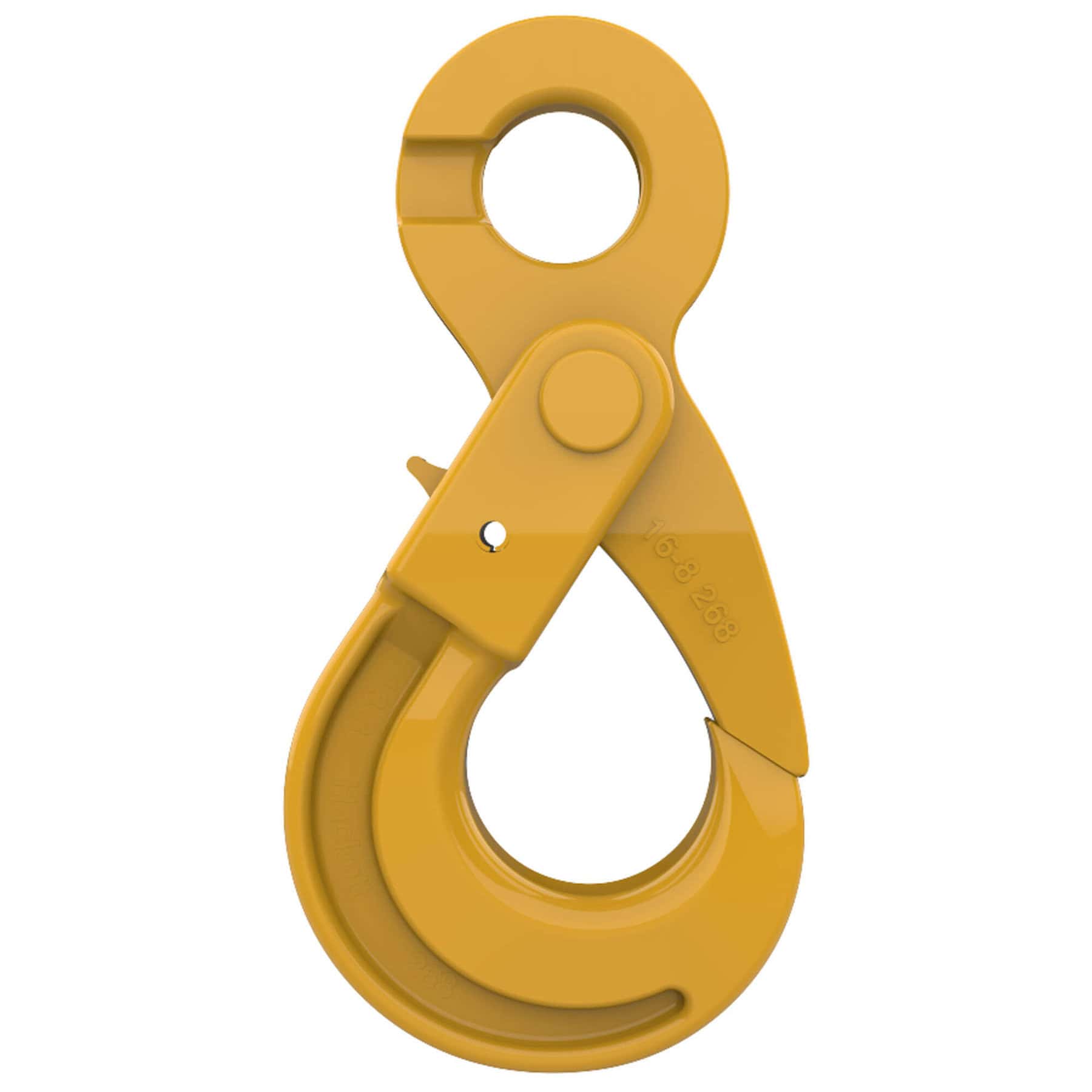

The William Hackett Grade 8 Eye Self Locking Hook incorporates a special latch mechanism that locks itself automatically when it comes under load. Manual interaction of the latch trigger then allows disengagement of the locking mechanism once the load is relieved. It also features an eye attachment type, making it suitable for use in both chain and wire rope assemblies.

The eye design allows for easy attachment to lifting chains or other rigging equipment via shackle or connecting link. The self-locking mechanism enhances safety by preventing accidental unhooking during lifting operations. This feature adds an extra layer of security, crucial in applications where stability and reliability are paramount.

Constructed with quality materials and precision engineering, the William Hackett Grade 8 Eye Self Locking Hook meets industry standards for safety and performance. It is suitable for use in various sectors, including construction, manufacturing, and industrial applications.

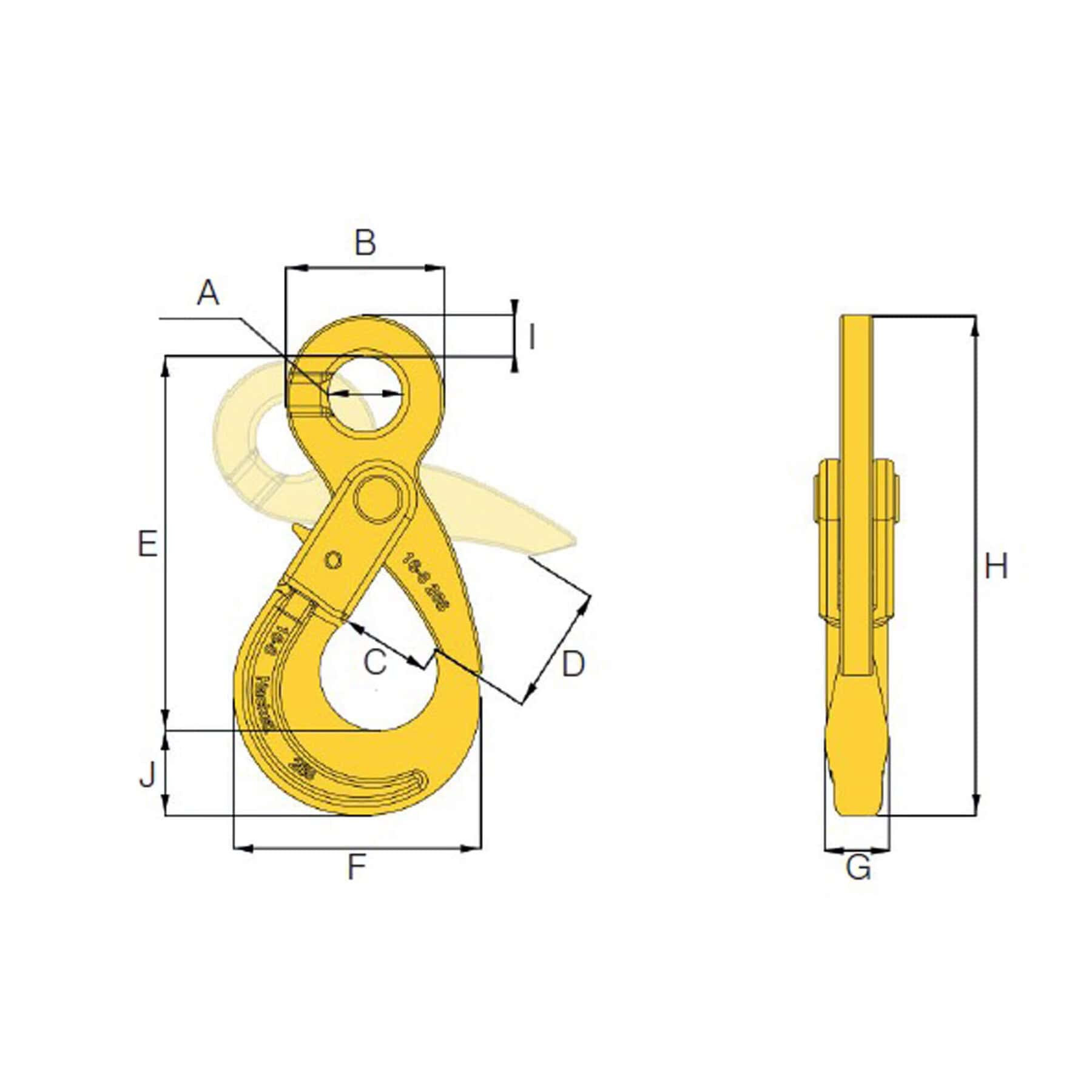

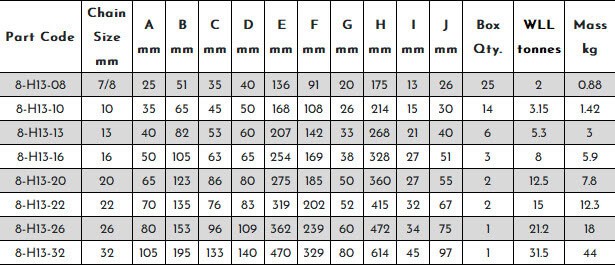

For specific details, including load capacities, dimensions, and usage guidelines please see the PDF attached below.

All William Hackett Grade 8 lifting components comply fully with the relevant section of EN1677, they are forged from alloy steel, they are crack detected following heat treatment and finally proof tested to 2.5 times working load. The full compliance of these components means that they can be used in chain slings certified to EN 818-4, for use in a temperature range of -40°C up to 200°C without reduction in working load limit.

These hooks can be connected to 1 Leg, 2 Leg, 3 Leg & 4 Leg Chain Slings.
