HA Key Eye Point (Metric Thread)
£13.06

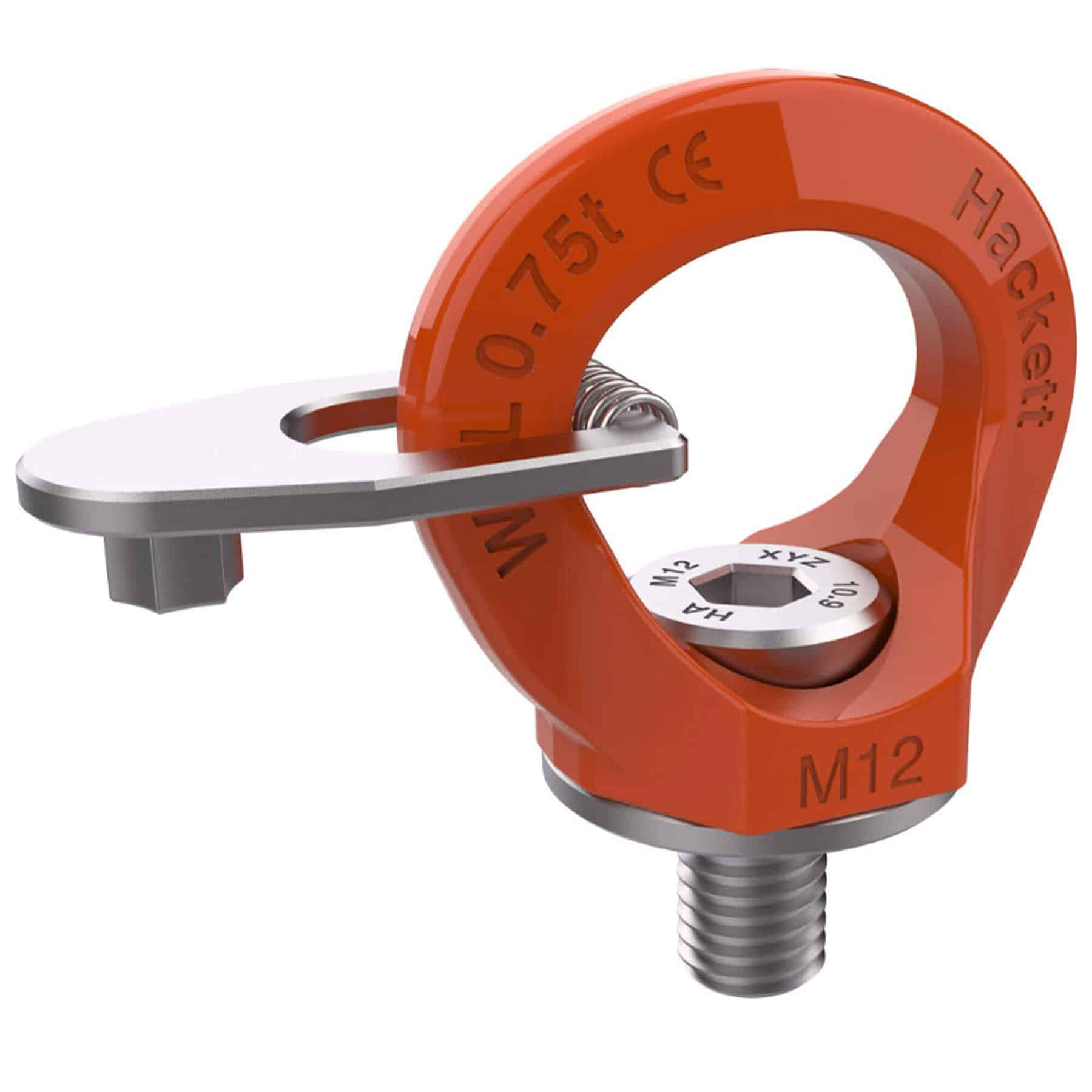

The HA key eye point is a bolt-on load attachment product designed for use with loads that incorporate tapped holes. It can rotate 360° around the bolt axis, allowing the key eye point to adjust to the direction of the load. It features a locking key which can be used to fix the orientation of the eye point by anchoring it to the bolt. The HA key eye point is suitable for top mounting, as well as side mounting providing that the working load limit is derated.
Key Features
Standards: designed and manufactured in accordance with EN1677-1 and ASME B30.26.

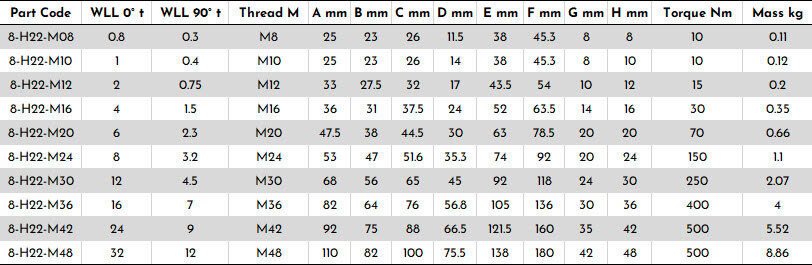

Product sizes: available in sizes M8 to M48 and with working load limits from 0.8 tonnes to 32.0 tonnes (when lifting
at 0°).
Product markings: key eye point body marked with manufacturer name “Hackett”, working load limit (based on 4 : 1 safety factor), metric thread size, and batch number for product material traceability. Bolt marked with “HA” branding, metric thread size, bolt material grade, and batch number for bolt material traceability.
Temperature: operational temperature range of – 40°C to + 200°C without reduction in working load limit.
Material: alloy steel.
Bolt Grade: 10.9.
Testing: load rated parts are subject to 100% magnaflux crack detection following heat treatment. HA key eye points are proof tested to 2.5 times working load limit, and fatigue rated to 20,000 cycles at 1.5 times working load limit.
Brand
William Hackett Ltd
