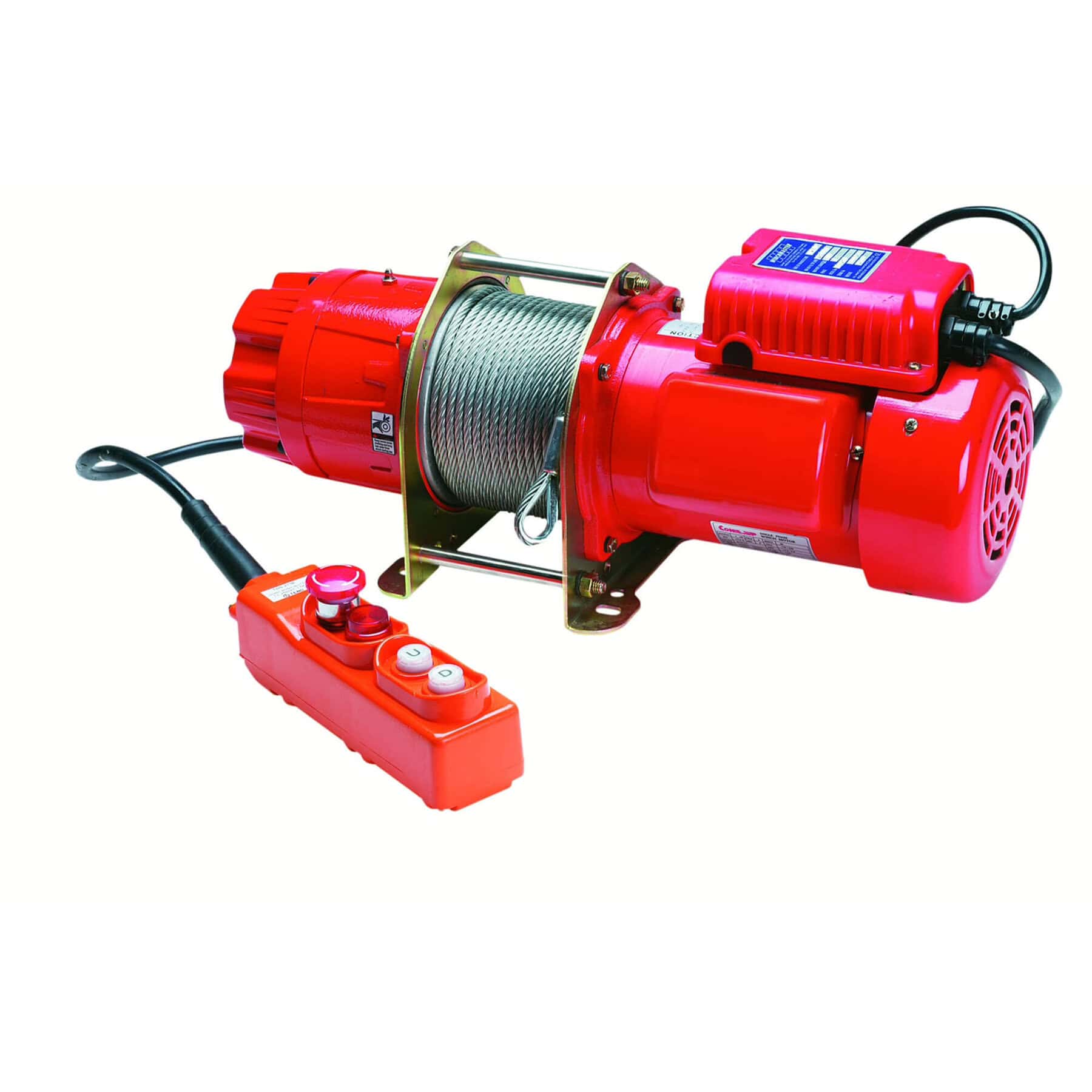

CP Series Lifting Winches

£0.00

Call: 01953 889998

Prices and stock changes often for this product, please call us or submit an request for a quote by clicking the button below

Enquire

Product Code CP Series Lifting Winches Category:
Description

CP SERIES LIFTING WINCHES
250-500kg
CP250 (250kg), CP300 (300kg) CP500 (500kg), CP500T (500kg)
110v or 240v x 1ph / 415v x 3ph AC

FEATURES INCLUDE:

  • Single or 3 phase options
    CP250 = 110v & 240v x 1ph
    CP300 = 240v x 1ph
    CP500 = 240v x 1ph
    CP500T = 415v x 3ph (Includes low voltage control)
    1ph have a duty cycle of 25%, with a maximum of 60 starts per hour
  • Electromagnetic, spring applied, failsafe brake. Provides instant, safe braking
  • Bi-rotational. CP winches can be installed with wire rope coming off the top or bottom of the drum
  • Enclosed drum flange. Prevents rope becoming trapped between drum and support casing
  • Complete with wire rope. Galvanised for longer life
  • Wire rope has minimum factor of safety 5:1
  • Compact design. For easy installation
  • Quiet running Induction motor
  • 360º weighted safety hook. Swivel type with safety catch
  • 3 metre pendant control. Pre-wired to the winch with 2 buttons and emergency stop
  • 2 metre power lead. Pre-wired to the winch with commercial type plug
  • Motor to IP44 as standard

ADDITIONAL EQUIPMENT

  • Low voltage control (Supplied as standard on 3ph)
  • Radio remote control – via low voltage control
  • Weather proof enclosure

NOTES

These winches must not be used for the movement of personnel and 7 wraps of wire rope must be maintained on the drum.
Data shown is approximate and intended as a guide only.

WARRANTY

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.
WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.



Product
Code
Lifting Capacity
(kg)
Lifting Height
(m)
Weight Hoist Only
Total Kit (kg)
Line Speed 1st Layer/
Last Layer (m/min)
Wire Rope
Diameter
(mm)
Wire Rope
Length
(m)
Motor Outputs
Kilowatts (kw)
Motor Outputs
Amperes (amp)
110v/240v/415v
Drum
Length/Drum ø/ Flange ø (mm)
Rope ø to mean
drum ø*
Price

CP250 250 28 34/36 10/15 5 30 0.75 10/5/NA 110/94/154 20:1 P.O.A
CP300 300 28 38/40 10/15 5 30 1.15 NA/7.6/NA 110/94/154 20:1 P.O.A
CP500 500 42 55/57 10/15 7 45 1.8 NA/12.8/NA 220/102/180 18:1 P.O.A
CP500T 500 42 54/56 11.6/18.3 7 45 1.58 NA/NA/4 (3ph) 220/102/180 18:1 P.O.A
