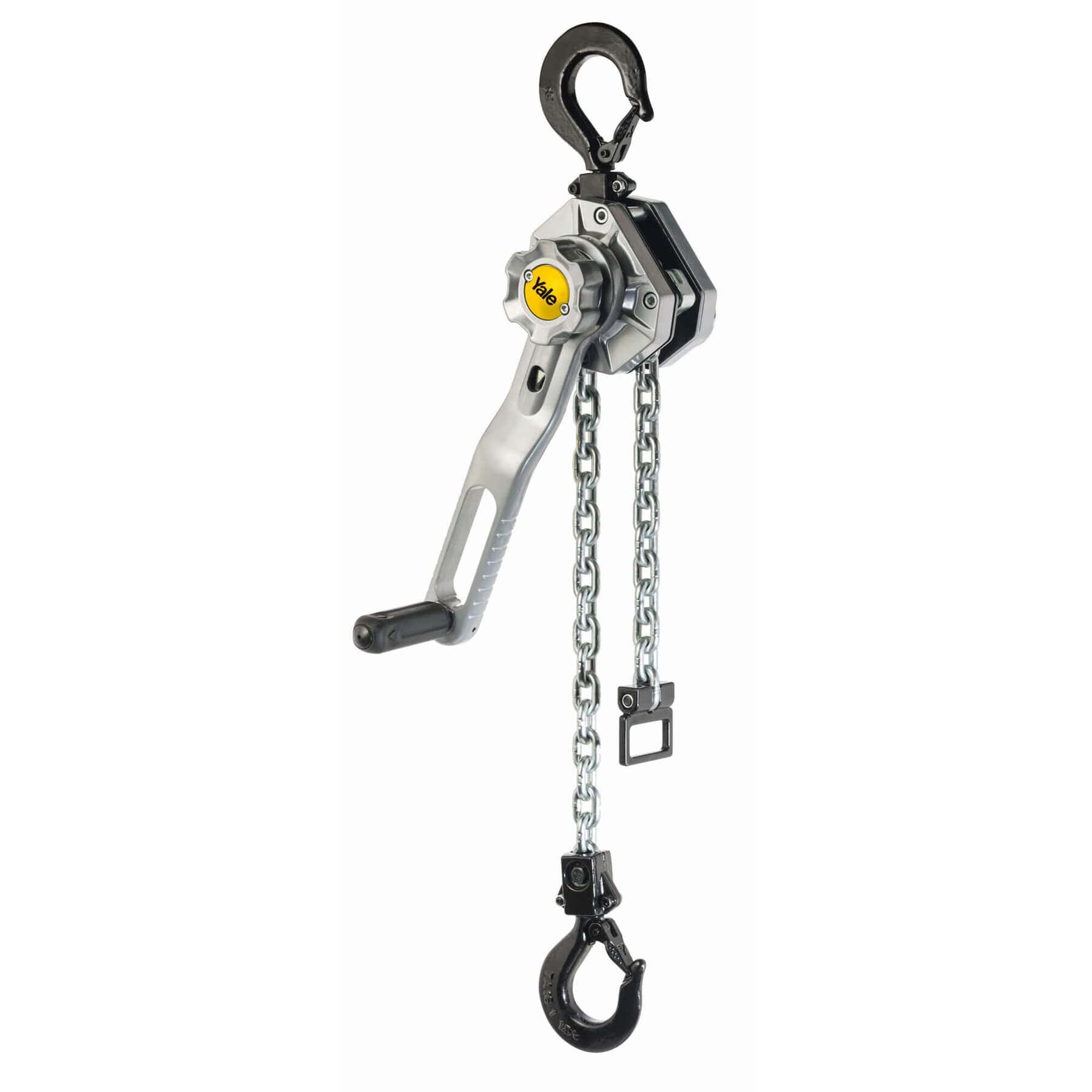

Yale Ergo 360 Ratchet Lever Hoist

Yale Ergo 360 Ratchet Lever Hoist

Redefining lever-operated hoists, the Yale Ergo 360 Ratchet Lever Hoist features the revolutionary crank handle that allows for efficient operation in both lifting and pulling applications.

Ergonomically designed for increased safety, the patent-pending Yale Ergo 360 Ratchet Lever Hoist lets the operator work up to 12 times faster and with as much as 30% less effort than with conventional ratchet lever tools.

• CRANK HANDLE

First-of-its-kind lever handle design will revolutionise the ratchet lever hoist industry. Unique foldable lever handle and 360° rotating action increases productivity while reducing risk of operator injury.

• CONVENIENT DIRECTIONAL INDICATOR

Easy-to-use, highly visible directional indicator on the handle clearly shows operating direction as lifting, lowering or neutral.

• EASY & SMOOTH FREE CHAINING

Quick take up and positioning of slack chain – even with one hand. Designed not to accidently free chain while under load. Cast chain end stop allows user to easily position the chain in free-chaining mode and prevents it from entering the liftwheel.

• POSITIVE LOAD CONTROL

Enclosed Weston-type brake for precise load positioning.

• BUILT TO LAST

Lightweight aluminum housing withstands rigorous use and features high-quality, long-lasting bearings. Powder coat finish provides extra protection in harsh environments.

• EXCELLENT CORROSION PROTECTION

Robust chain guide and chain stripper made from cast steel and zinc-plated for corrosion protection.

• EASY-TO-INSPECT SWIVEL HOOKS

Bolt on hooks with nyloc nuts to simplify the inspection process. Hooks are forged, allowing them to yield under overload without breaking. Cast safety latches provide positive and secure load engagement.

• 360° rotation increases efficiency, allowing operators to work up to 12 times faster than with a conventional ratchet lever hoist.
• Requires 30% less effort to operate.
• Easy and effective operation from any angle with handle that folds down and locks into position on either side of the lever.

• Design keeps the operator’s body aligned with the load chain, reducing the risk of the twist effect – when a hoist twists around the chain. No need to use a second hand to stabilize the hoist.
• Operator can securely grip the grooved, no-slip handle.
• Crank handle made of durable polyamide with a heavy-duty steel core for rugged use.
