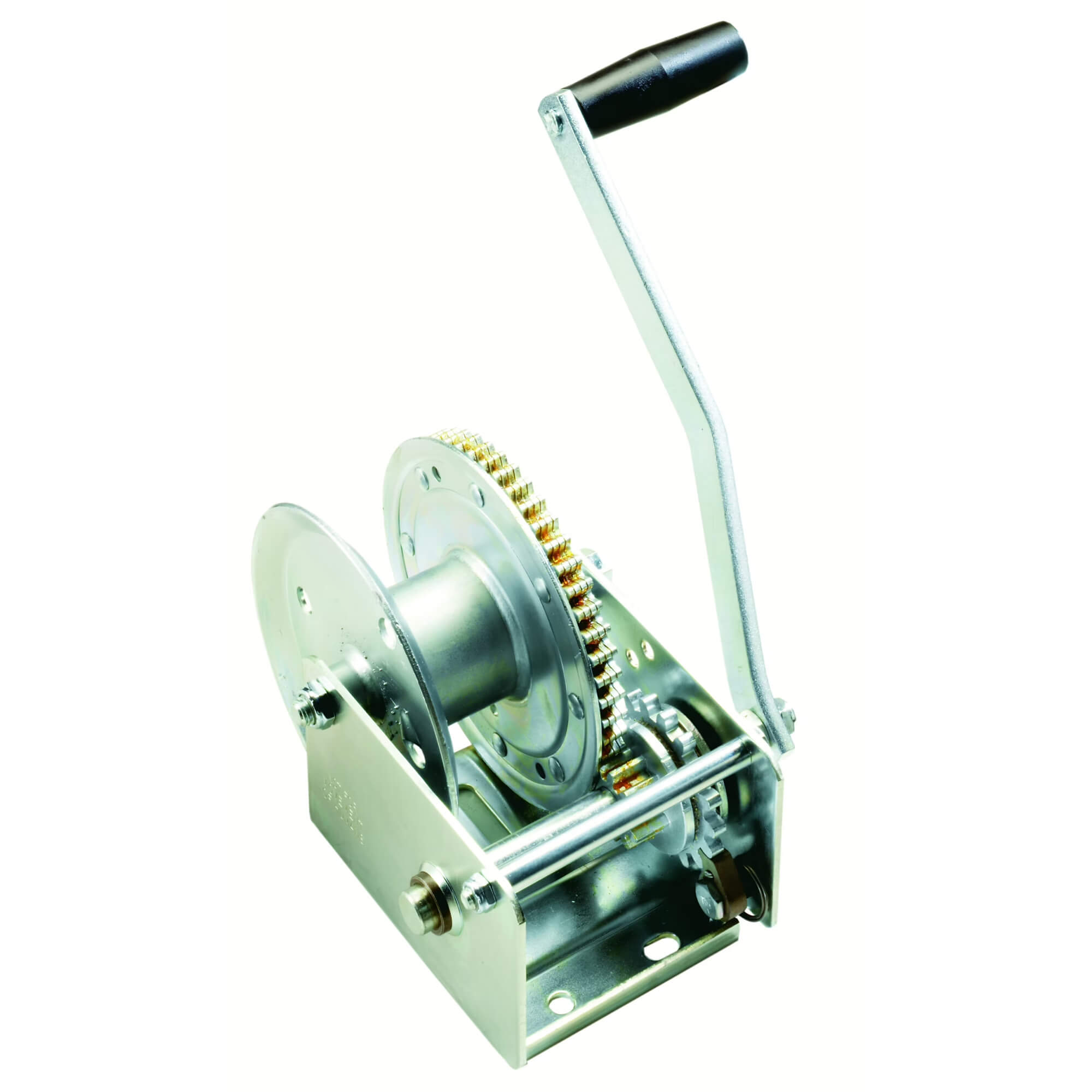

K Series with Automatic Brake

TYPICAL K SERIES WITH AUTOMATIC BRAKE APPLICATIONS INCLUDE:

• Manual Hoists
• Manual Lift Trucks
• CCTV & Lighting Towers
• Boat Lifts
• Retractable Swing Keels
• Trailer applications for Rolling Loads

K SERIES WITH AUTOMATIC BRAKE FEATURES INCLUDE

• Designed for lifting and hoisting applications the self-activating automatic brake holds the load when the crank handle is released
• Unlike competitive products, no minimum load is required to activate the brake or wind the cable off the drum
• Brake design enables the load to be wound out under full control with the minimum of effort
• Ideal for pulling a rolling load on an incline where there is concern of a runaway load during the descent
• Designed for commercial use with heavy gauge material, wide gear contact and thick zinc plating
• Large drum diameter providing minimum 10:1 wire rope to drum ratio allowing easier rope wrapping and extended rope life
• Can be supplied modified for use with webbing strap
• KX Series include plated gear cover for protection and a dual ratchet system for added security
• Comfort grip handles

SELECTING THE CORRECT ‘K’ SERIES MODEL

• In lifting applications it is a legal requirement to use a wire rope with a minimum factor of safety of 5:1. The maximum diameter of the rope that can be used on each model is shown in the table above and is determined by the ratio of rope to drum diameter
• Winch rating and maximum mechanical rating is based on the first layer of rope on the drum. The capacity reduces by approximately 10% for each extra layer of rope on the drum
• K series winches do not include a freespool
• The mechanical force required to achieve the Maximum rated line pull is approximately 18kg
• Always select a winch model that will be operating well within its maximum capacity to ensure easy operation and safety
• For maximum efficiency use only the amount of wire rope on the drum required for the application plus 2.5m
• A minimum of 5 wraps of wire rope must be maintained on the drum at all times
