Description

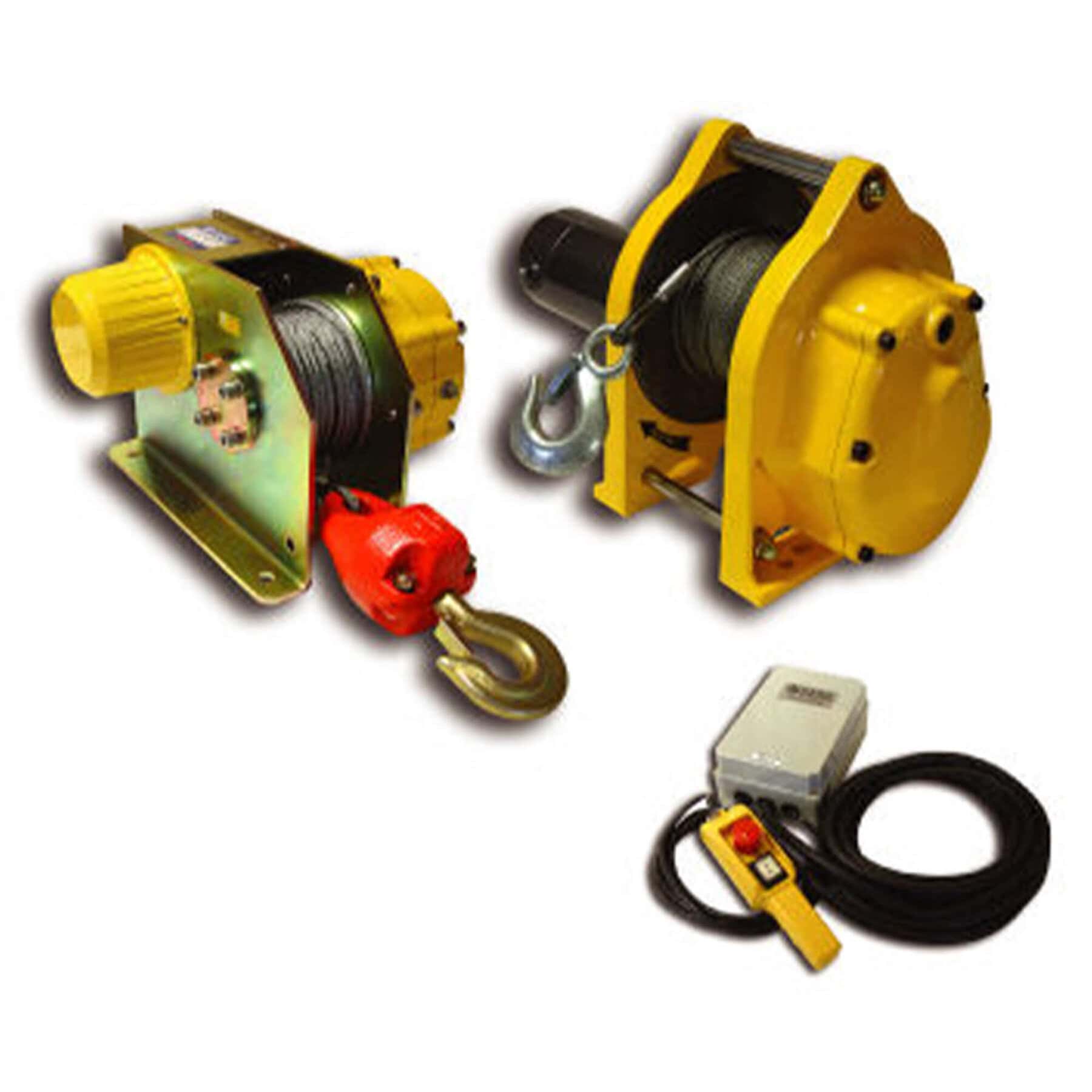

Heavy Duty DC Hoist Range120 – 500kg
DH120 (120kg), DH300 (300kg), DH500 (500kg)
12v or 24v DC

These commercial, 12v or 24v DC machines have been specifically designed for lifting applications on vehicles and boats.

FEATURES INCLUDE

  • 12v or 24v reversible permanent magnet motor. Reliable and low maintenance
  • Dynamic and mechanical brake. Provides instant, safe braking
  • Lightweight and compact design. For easy handling and installation
  • Low amp draw. For higher duty cycle
  • All Heavy Duty Hoists have a duty cycle of 25%, with a maximum of 60 starts per hour
  • Excellent rope to drum ratio. Aids wrapping and prolong wire rope life
  • Low sound levels. Causes less noise pollution
  • Supplied complete with wire rope. 6 x 19 wire core, galvanised for longer rope life. Minimum factor of safety = 5:1
  • Rope diameter to Drum diameter factor of safety = 15:1
  • 360° weighted safety hook. Swivel type with safety catch
  • 3.5 metre plug in pendant control. 2 button plus emergency stop
  • Foot mounted. Can also be installed upside down
  • Quick release power lead. Plug in with commercial type 2 pole plug

NOTES

These hoists must not be used for the movement of personnel and 7 wraps of wire rope must be maintained on the drum.
Data shown is approximate and intended as a guide only.

WARRANTY

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.
WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.



Product
Code
Lifting Capacity
(kg)
Lifting Height
(m)
Weight Hoist Only
Total Kit (kg)
Line Speed 1st Layer/
Last Layer (m/min)
Wire Rope
Diameter
(mm)
Wire Rope
Length
(m)
Motor Outputs
Kilowatts (kw)
Motor Outputs
Amperes (amp)
110v/240v
Drum
Length/Drum ø/ Flange ø (mm)
Price
DH120 120 5 17/19 3.5/5 4 5 0.1 20/10 46/70/155 P.O.A
DH300 300 12 27/34 2/3 5 12 0.3 30/15 97/95/190 P.O.A
DH500 500 12 34/37 2/3 5 12 0.3 50/25 97/95/190 P.O.A

THIS PRODUCT IS CURRENTLY NOT AVAILABLE TO BUY ONLINE.

Please call us on (01953) 889998 for more information, including available discounts.
