Technical drawing of HACK10 grade 10 sub assembly link with labelled dimensions A to FBlue oblong master link with two blue sub links connected to grey chain legs on white background

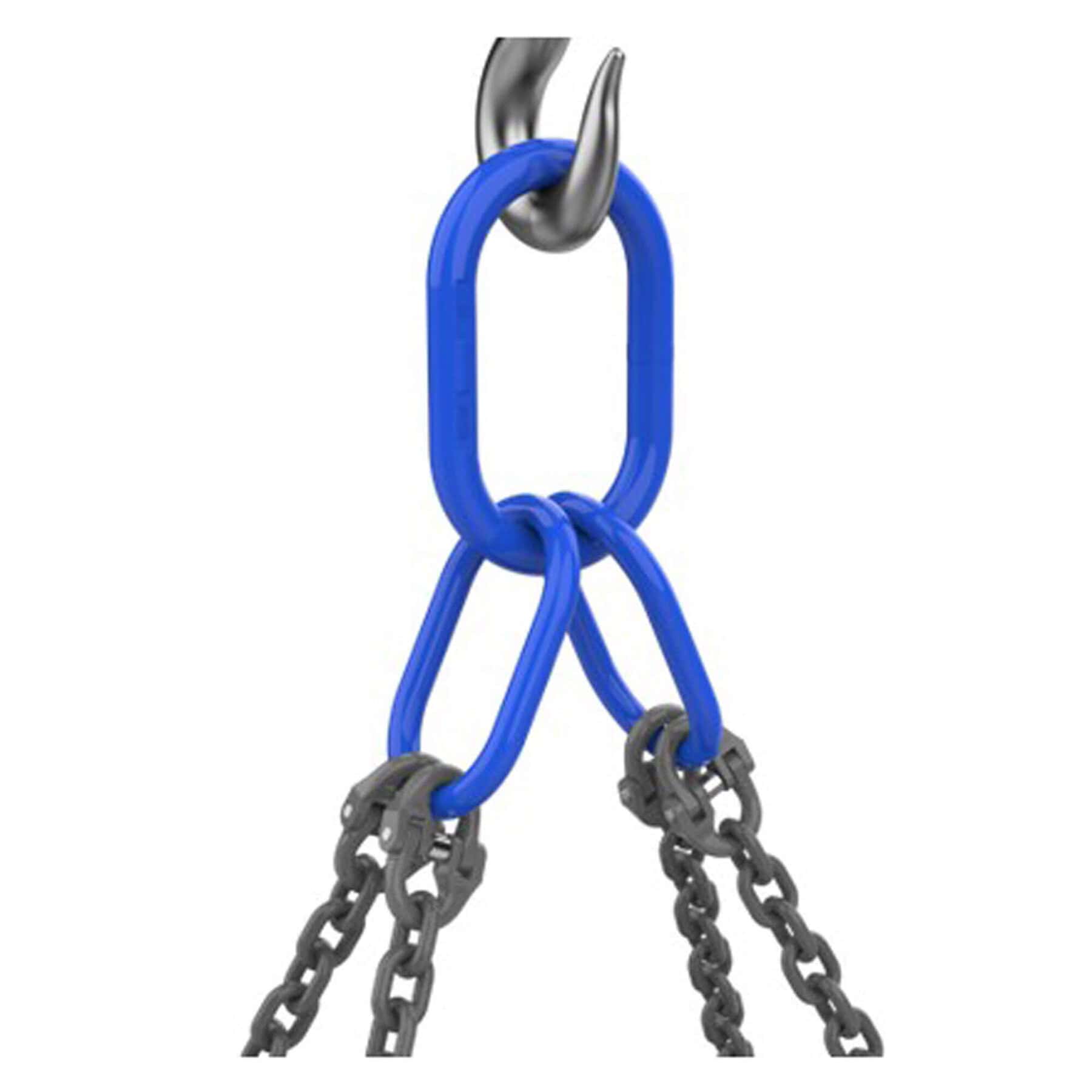

Blue Grade 10 chain link with two connecting legs on white background
Technical drawing of HACK10 grade 10 sub assembly link with labelled dimensions A to F

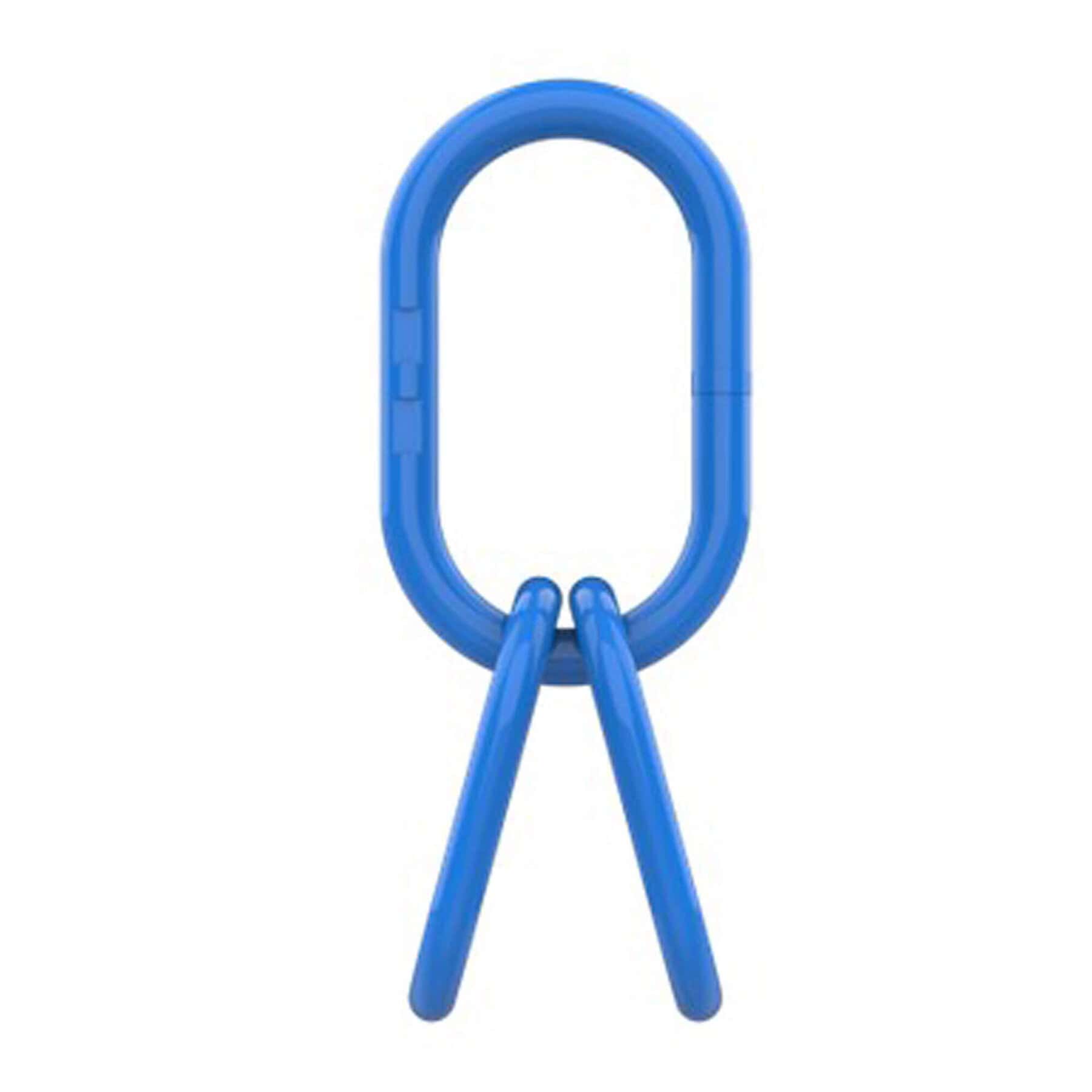

Blue oblong master link with two blue sub links connected to grey chain legs on white background

HACK10 Grade 10 Sub Assemblies

£15.82

Addition Options

  • Component Size *

Product total

Options total

Grand total

Product Code 10-H02 Category:
Blue circular badge with white text HACK 10 inside a rounded square borderWilliam Hackett logo and text on an orange background
Description

Hackett Grade 10 Sub Assemblies are manufactured from alloy steel  in accordance with EN1677-4. All Master Links are individually proof load tested to 2.5 times working load limit in accordance with EN1677. Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4. Hackett Grade 10 lifting components are suitable for use in a temperature range of -40°C up to 200°C without reduction in working load limit, reductions apply up to 400°C.





Brand

Brand

HACK10

Blue circular badge with white text HACK 10 inside a rounded square border

William Hackett Ltd

We have been a UK Distributor for William Hackett Ltd for many years now, we can supply any of your lifting needs. So please give us a call on 01953 889998 or email us at [email protected]. William Hackett have been supply lifting chains for many especially to agriculture. They now have there own range Hack 8 and Hack 10 which we can supply and can easily be purchased direct from our website.
William Hackett logo and text on an orange background
