HACK10 Grade 10 Clevis Shackle

HACK10 Grade 10 Clevis Shackle is a type of lifting or rigging hardware designed for heavy-duty applications. The Grade 10 designation indicates a high-strength material, alloy steel, known for its excellent tensile strength and durability.

1. Material Grade (Grade 10): The shackle is constructed from high-strength alloy steel, providing superior strength and resistance to wear and fatigue.
2. Clevis Design: The clevis design allows for easy attachment to lifting slings, chains, or other rigging components. It includes a clevis pin and cotter for secure connections.
3. Load Rating: The shackle is rated for a specific load capacity, and it’s crucial to adhere to these load limits to ensure safe lifting and rigging operations.
4. Safety Pin or Bolt: Clevis shackles come with a safety pin or bolt to secure the clevis pin and prevent accidental disengagement during use.
5. Durability: The shackle is designed and manufactured to resist wear, corrosion, and fatigue, ensuring a long service life even under demanding conditions.
6. Compliance: William Hackett produce Grade 10 Clevis Shackles in compliance with industry standards and regulations to ensure their suitability for lifting and rigging applications.
7. Identification Markings: The shackle may have markings indicating the manufacturer’s name or logo, the material grade and other relevant information for traceability and compliance.

When using Grade 10 Clevis Shackles, it’s essential to follow the manufacturer’s guidelines and industry standards for safe and proper usage. Regular inspections, adherence to load capacities, and compliance with safety regulations are critical to ensuring the effectiveness and safety of these lifting components.

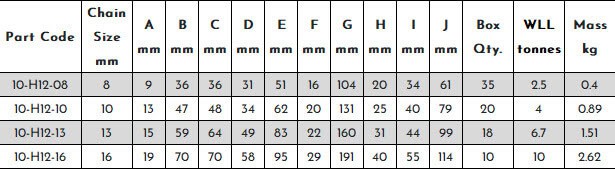

For specific details, including load capacities, dimensions, and usage guidelines please see the PDF attached below.

All William Hackett Hack10 lifting components comply fully with the relevant section of EN1677, ASTM A952/A and DIN PAS 1061. The grade 10 components are forged from alloy steel, they are crack detected following heat treatment and finally proof tested to 2.5 times working load. The full compliance of these components means that they can be used in chain slings certified to EN 818-4, for use in a temperature range of -40°C up to 200°C without reduction in working load limit.

These are to be used in 1 Leg, 2 Leg, 3 Leg & 4 Leg Chain Slings.
