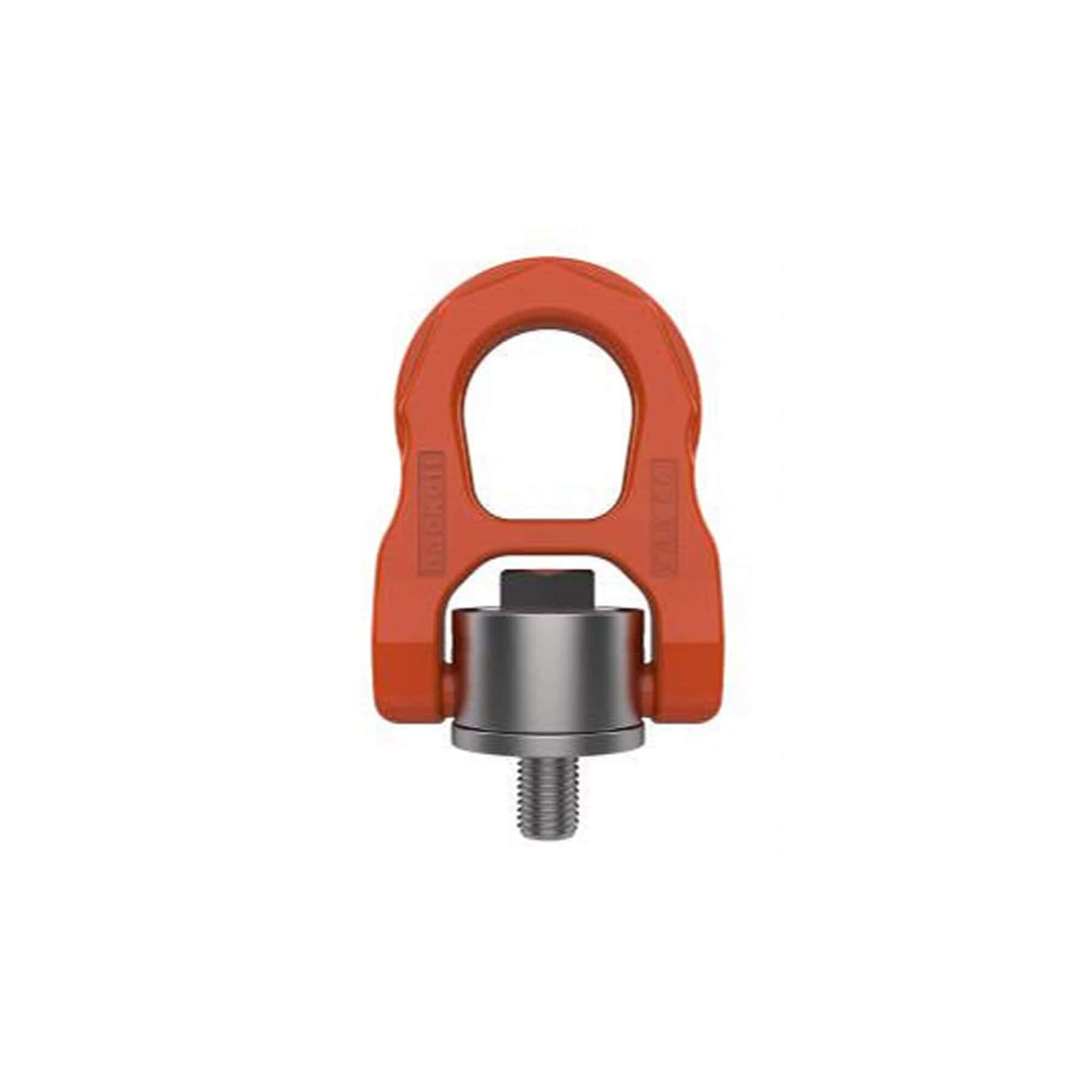

Orange swivel hoist ring with metric threaded bolt and grey base on white background

HA swivel hoist ring with orange loop attached to a steel block and lifting hook above

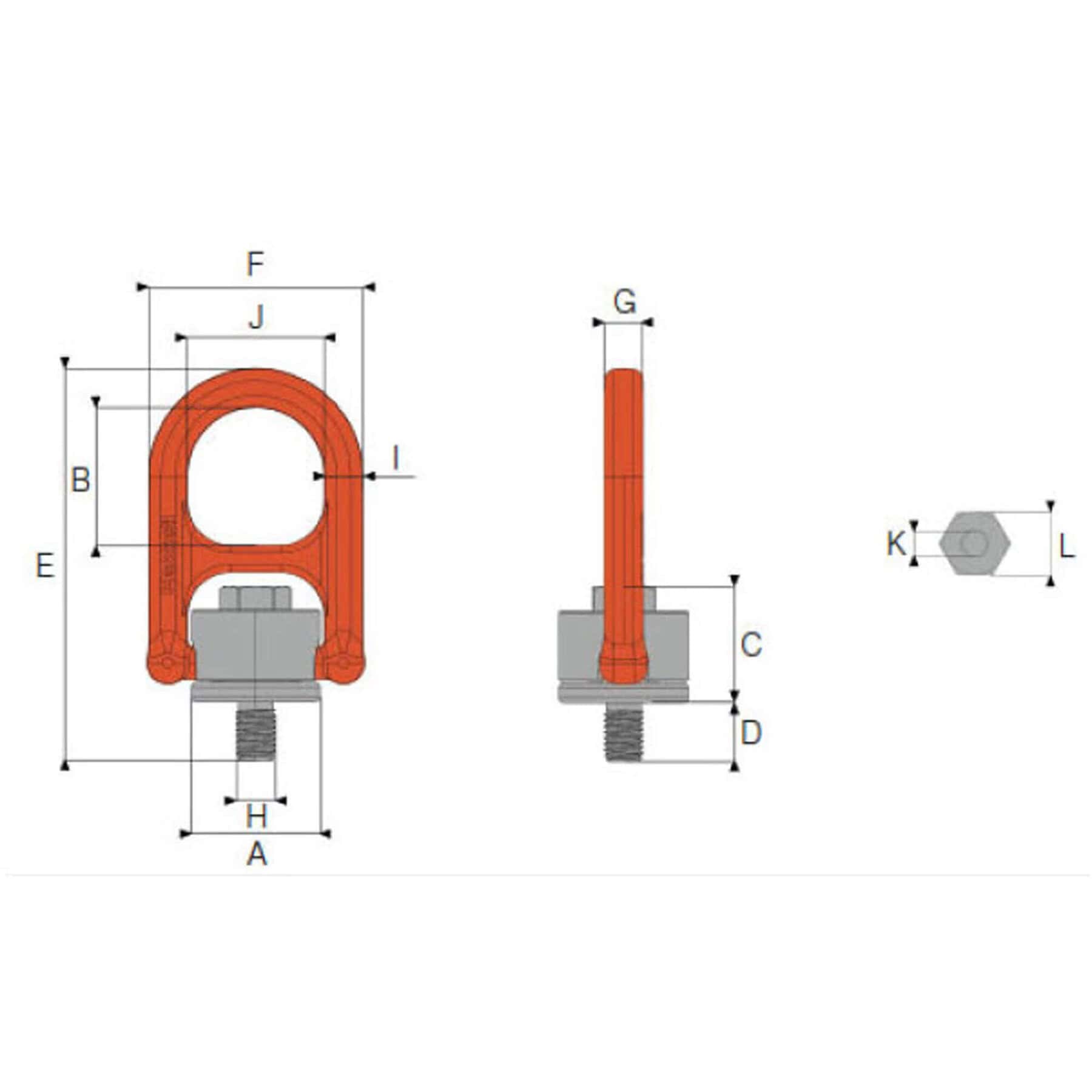

Dimensioned technical drawing of HA swivel hoist ring with metric threaded shank front and side views

HA Swivel Hoist Ring (Metric Thread)

Name: HA Swivel Hoist Ring (Metric Thread)
SKU: 8-H20-M__G
Price: 32.76 GBP
Availability: InStock

£32.76

Product Code 8-H20-M__G Category: Lifting Points, Eyebolts and Eyenuts

Description

The HA swivel hoist ring (metric) is a bolt-on load attachment product designed for use with loads that incorporate tapped holes. It can rotate 360° around the bolt axis, as well as pivot 180°, allowing the hoist ring to orientate to the appropriate angle of lift, mitigating the risk of damage. The HA swivel hoist ring (metric) is suitable for both top and side mounting, and maintains its full working load limit even when pulled at 90°.

WLL Range: 0.5t to 22.5t
Proof Load Test: 2.5 x WLL
Safety Factor: 4 : 1
Temp Range: -40°C to +200°C
Rotation: 360°
Pivot: 180°

Sectors
Construction
Industrial
Oil and Gas
Utilities
Marine
Transportation
Renewables

Specification

Brand

William Hackett Ltd

We have been a UK Distributor for William Hackett Ltd for many years now, we can supply any of your lifting needs. So please give us a call on 01953 889998 or email us at [email protected]. William Hackett have been supply lifting chains for many especially to agriculture. They now have there own range Hack 8 and Hack 10 which we can supply and can easily be purchased direct from our website.
