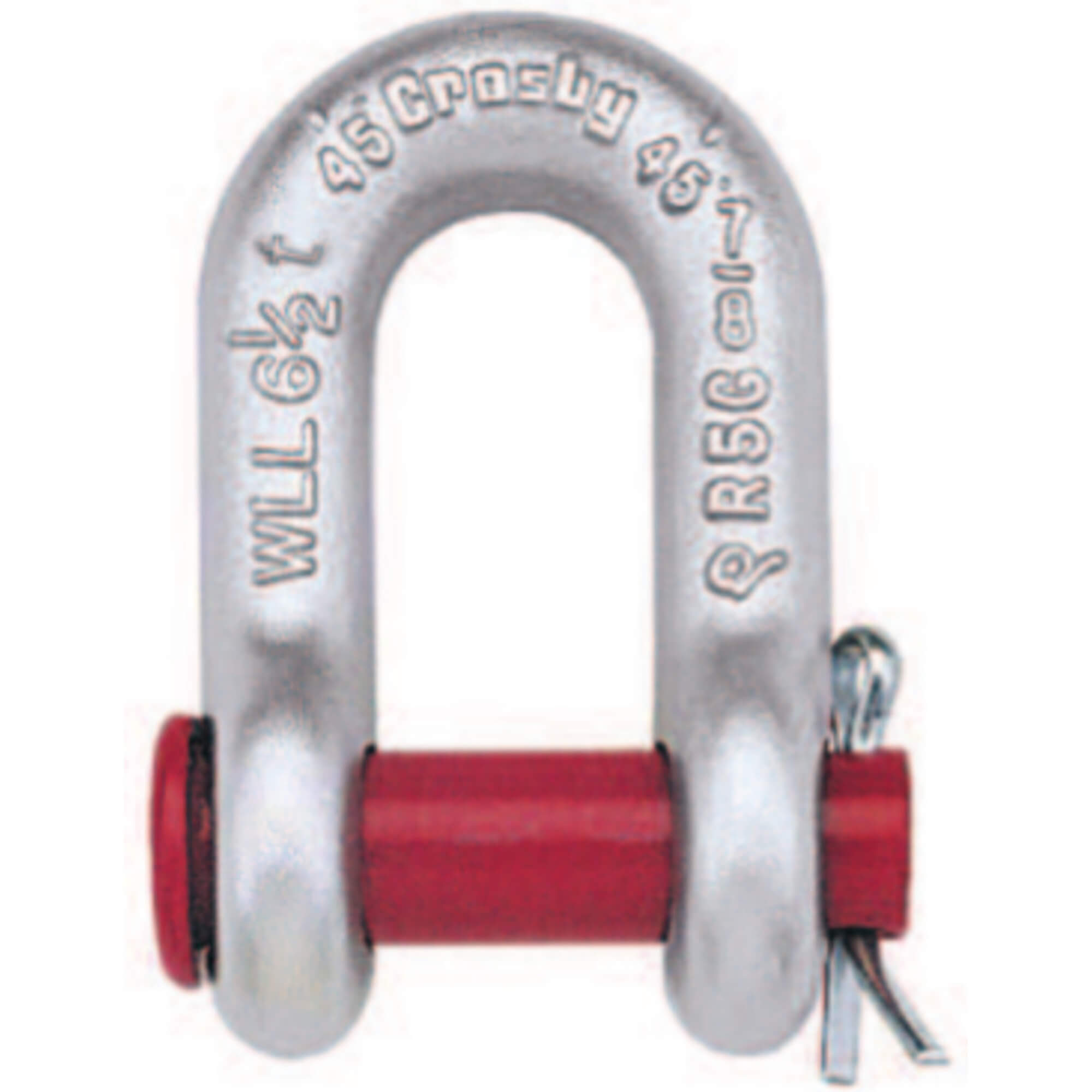

G-215 Round Pin Chain Shackles

G-215 Round Pin Chain Shackles

• Forged, Quenched & Tempered, with alloy pins.
• Working Load Limit permanently shown on every shackle.
• Hot-dip galvanized.
• Sizes 3/8 inch and below are mechanically galvanized.
• Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
• Shackles can be furnished proof tested with certificates to designated
standards, such as ABS, DNV, Lloyds, or other certification. Charges for
proof testing and certification available when requested at the time of order.
• Shackles are Quenched and Tempered and can meet DNV impact
requirements of 42 Joules (31 ft-Ib) at -20° C (-4° F).
• G-215 Round pin chain shackles meet the performance requirements of
Federal Specification RR-C-271H, Type IVB, Grade A, Class 1, except for
those provisions required of the contractor.
• DO NOT SIDE LOAD ROUND PIN SHACKLES.
• Look for the Red Pin®… the mark of genuine Crosby quality.
