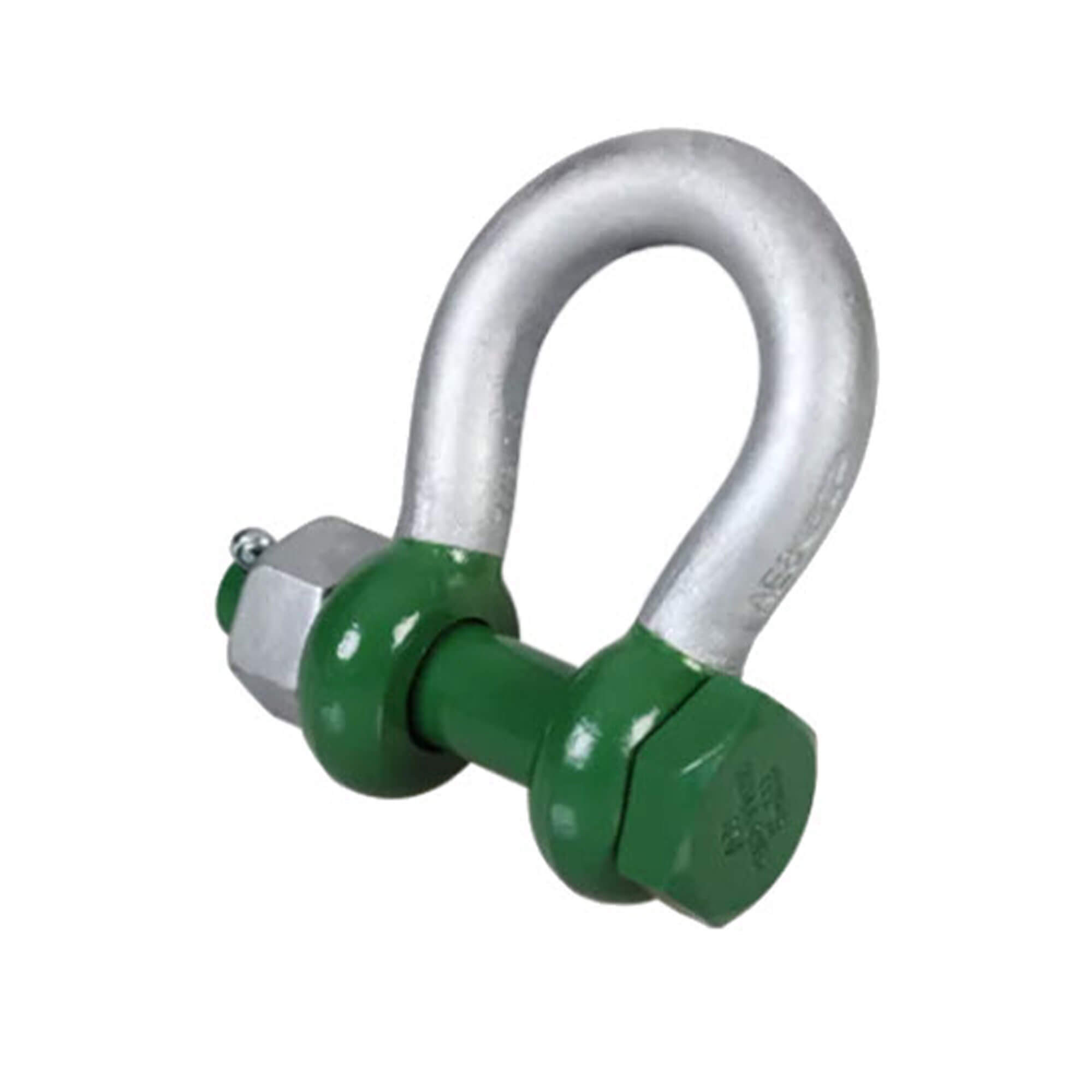

Green Pin Polar® Bow Shackle BN
Grade 8 Green Pin Polar® Bow Shackle BN with safety bolt and fixed nut for use under low temperatures
Highlights
- Perfect for use in low-temperature situations (down to -60 °C / -76°F)
- Safety bolt: perfect for when rotation of the pin is a risk
- Conforms to wide range of certifications (e.g. DNV)
- Superior stock availability of 99%
- Suitable for both one-leg and multi-leg systems
Product details
- Product code: G-5163
- Material: bow and pin alloy steel, Grade 8, quenched and tempered
- Safety factor: MBL equals 7 x WLL, for shackles with WLL 55 and 85 tons the MBL equals 6 x WLL
- Finish: hot dipped galvanized
- Temp. range: -60°C up to +200°C
Remember to follow guidelines set out by the HSE
