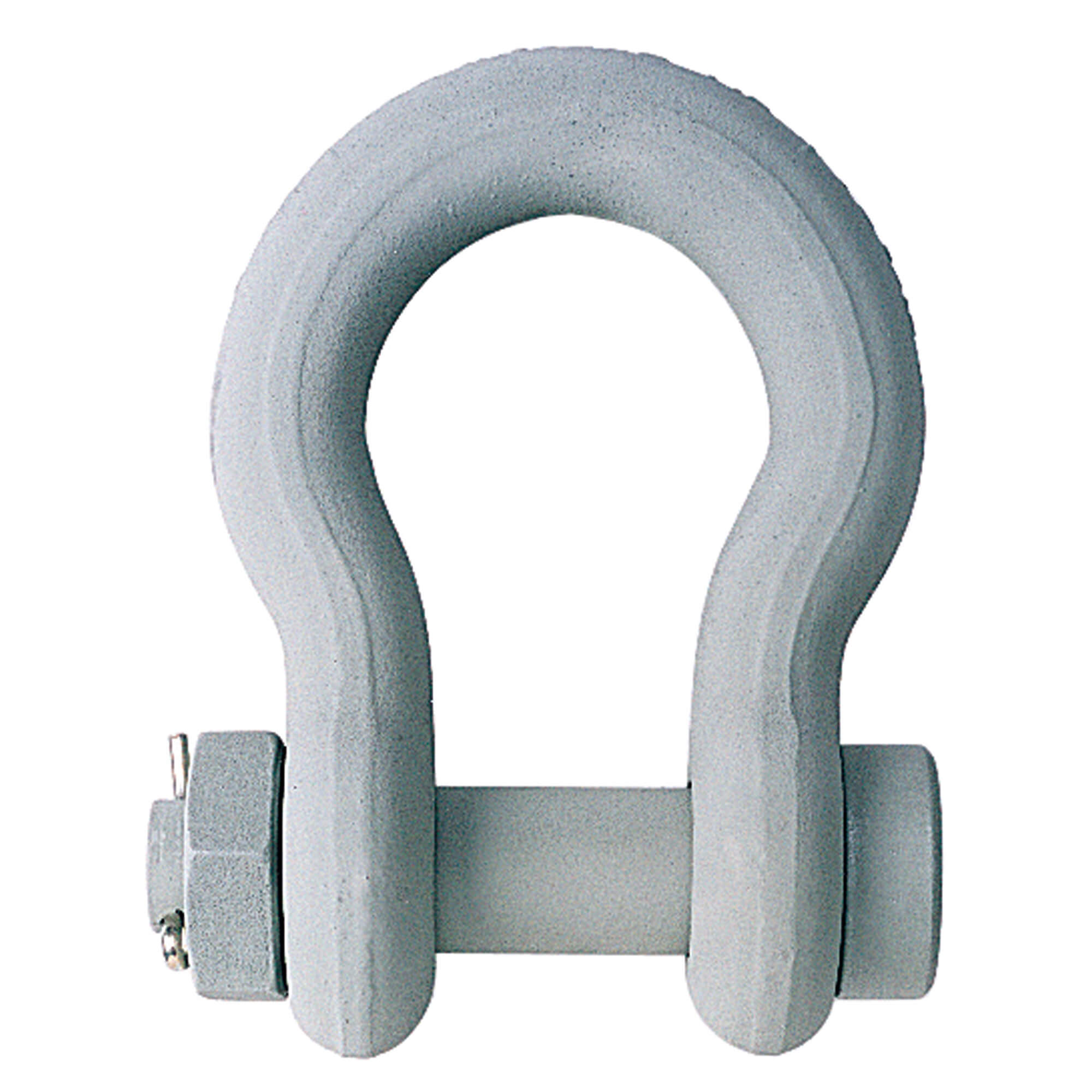

Crosby G-2130CT COLD TUFF® Bolt Type Anchor Shackles

Crosby G-2130CT COLD TUFF® Bolt Type Anchor Shackles

Product details for the Crosby G-2130CT COLD TUFF® Bolt Type Anchor Shackles

• Forged, Quenched & Tempered, with alloy bolt.
  • G-2130CT – carbon steel
  • G-2140CT – alloy steel
• Working Load Limit permanently shown on every shackle.
• Individually serialized with certification.
• Fatigue Rated (G-2130CT only).
• All sizes are individually proof tested to 2.0 times the Working Load Limit.
• Finish is inorganic zinc primer.
• Bow and bolt are certified to meet Charpy impact testing of 42 Joules (31 ft-lb) min. avg. at -20° C (-4° F).
• Individually magnetic particle inspected with certification.
• Type Approval and certification in accordance with DNV 2.7-1 Offshore Containers, and Rules for Certification of Lifting Appliances, DNV-OS-E101 and are produced in accordance with
• DNV MSA requirements, including required documents.
• DNV certified minimum design temperature -4° F. May be used at -50° F (-45° C) in non DNV applications.
• Meets the performance requirements of Federal Specification RR-C-271H Type IVA:
  • G-2130CT – Grade A, Class 3, except for those provisions required of the contractor.
  • G-2140CT – Grade B, Class 3, except for those provisions required of the contractor.
