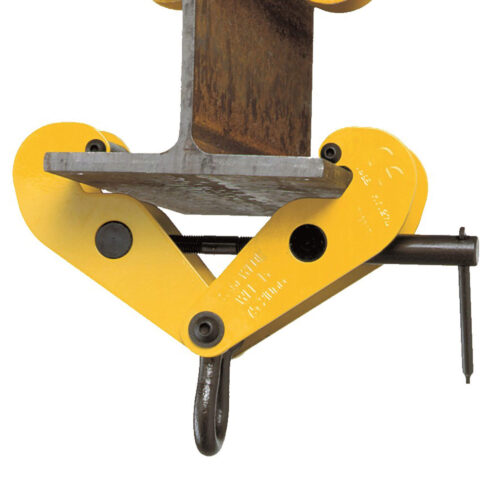

Tiger Fixed Jaw Heavy Duty Beam Clamp with Shackle

Tiger Fixed Jaw Heavy Duty Beam Clamp with Shackle

https://www.rhtltd.co.uk/tiger-lifting
  • SKU:
    BCF
  • Status:
    2 - 3 Days Delivery
  • £84.00


Available Options


Main Features

  • Range from 1.0t to 30.0t
  • Quick and versatile rigging point for hoisting equipment
  • Shackle suspension point
  • Suitable for pulling and lifting at angles across the beam
  • Up to 90° side loading with no deration
  • 15° cross loading with no deration
  • Highly flexible – for lifting, pulling or as a semi-permanent anchor point
  • Evenly distributed loads achieved through maximum jaw surface area
  • Multidirectional adjusting screw spindle ensures a high clamping force to the various flange sizes within its capacity
  • Beam width range 75mm to 457mm
  • Operating temperature of -50°C to +50°C
  • 4:1 factor of safety
  • Optional locking device for 1t-10t (as standard on 15t-30t)
  • These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991

  • BCF Information: click to download pdf
