YOKE Key Eye Point BS EN1677


Addition Options

Product total

Options total

Grand total

Product Code 8-291K- Category:
William Hackett Chains

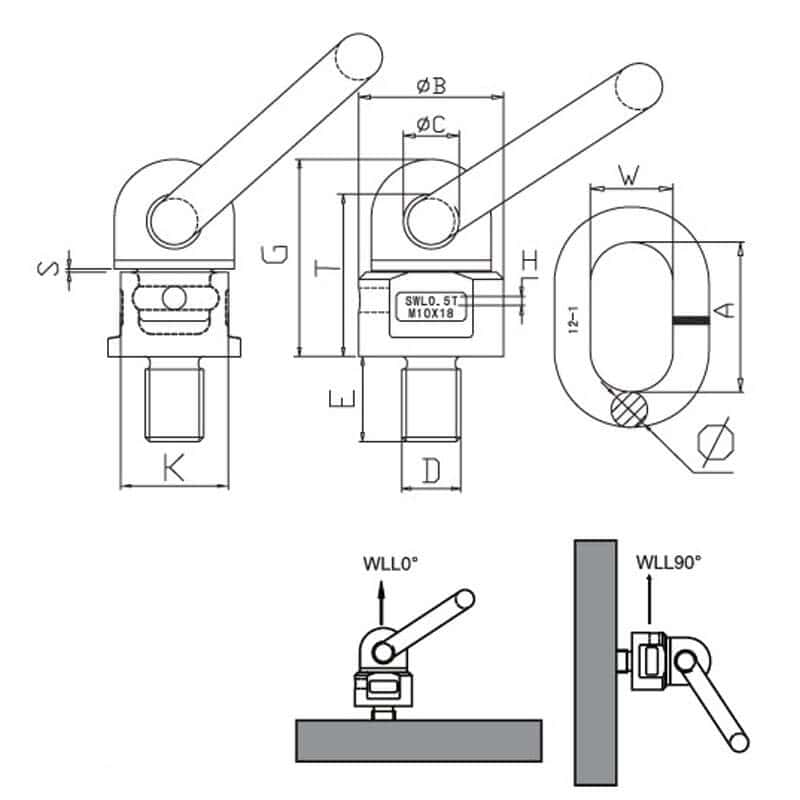

YOKE Grade 8 Key Eye Point – Type 291K Metric Thread

  • Rotates through 360º adjustable in the direction of the load.
  • Manufactured from alloy steel, quenched and tempered. Captive bolt with high WLL.
  • Manufactured and tested in accordance with EN1677-1.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolts are Metric Thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • Design Factor 4 : 1.
  • All YOKE Lifting Points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.
