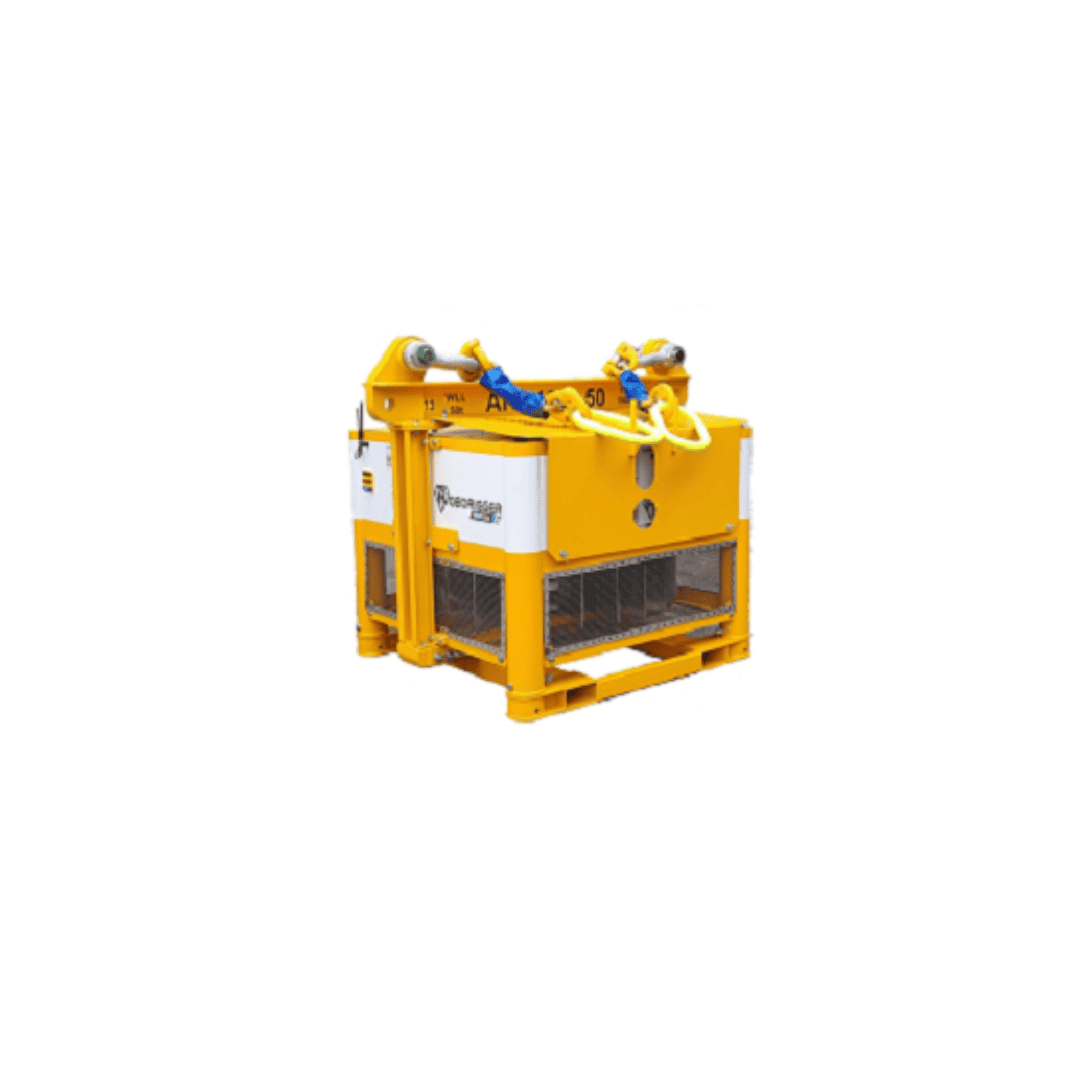

Roborigger ARM1500-50

Roborigger ARM1500-50

Key features:

• integrated load cell
• Integrated IP camera capable of providing video feed and still pictures of load
• 3g/4g modem to provide internet connectivity
• Wi-Fi for transmission of video for use as crane camera or for remote monitoring
• Wireless remote using off the shelf 2.4 GHz, 433MHz or 900MHz crane controller
• • 12 hour+ battery pack. Optional 24×7
• Onboard battery charger: input AC240V 15A
• Remote monitoring using ROBORIGGER IoT

Specifications:

• WLL: 50 t (lift spreader capacity)
• PROOF LOADING: 75 t
• Module Size: 1.57 (W) x 1.76 (W) x 2.15m (H)
• Operating temp: 0 to +55C
• Weight: module 1,080 kg (without lift frame)
• Weight: 1,900 kg including spreader
• Designed to AS1418 class U3 loading Q3
• Fatigue life 100,000 cycles spectrum
• Kp=1
