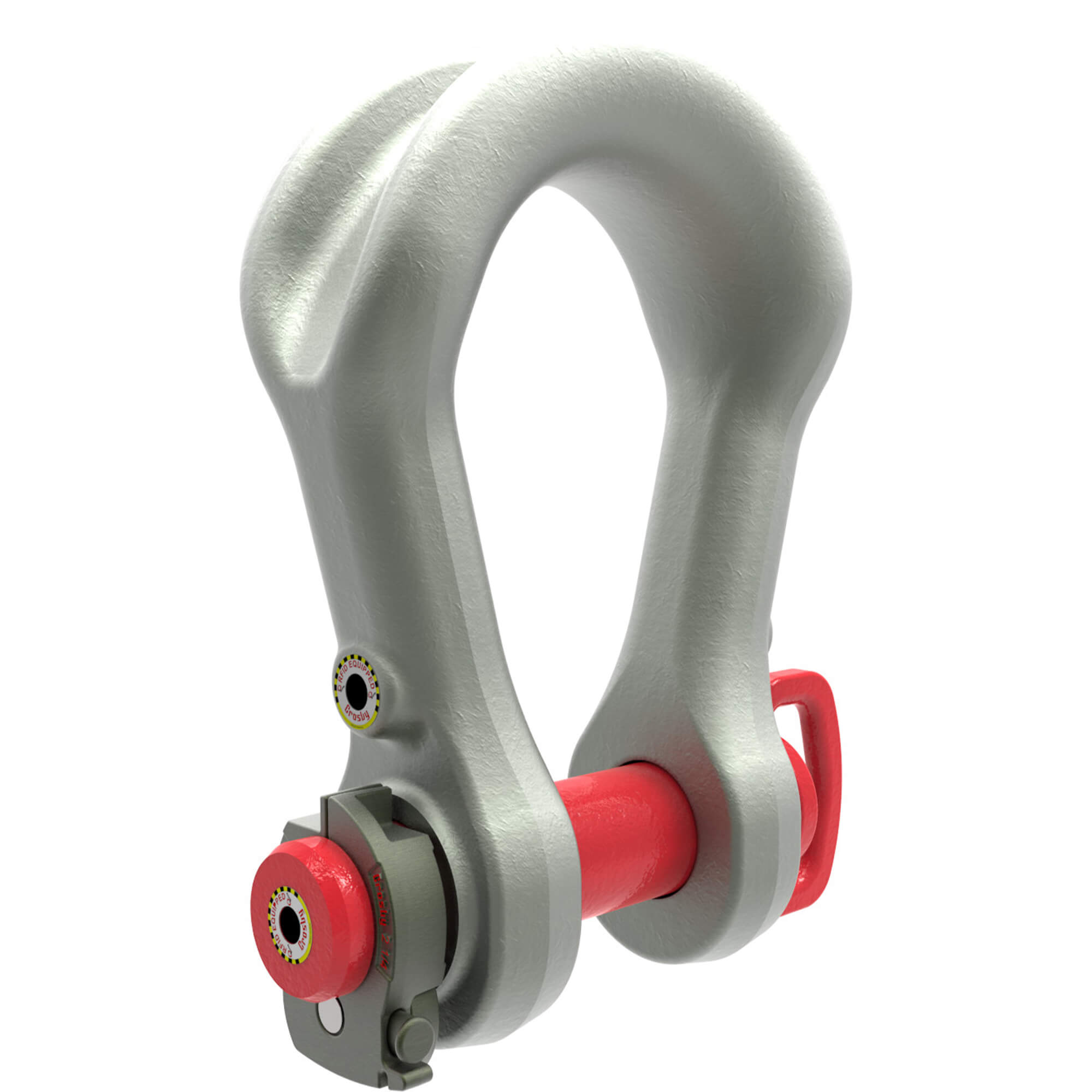

Crosby G-2160E Easy-Loc Wide Body Shackles

Crosby G-2160E Easy-Loc Wide Body Shackles

Product details for the Crosby G-2160E Easy-Loc Wide Body Shackles

• Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and eliminates need for a thimble.
• Increases usable sling strength a minimum of 15% and greatly improves life of wire rope slings.
• Can be used to connect synthetic web slings, synthetic round slings or wire rope slings.
• All sizes Quenched & Tempered for maximum strength.
• Forged alloy steel from 75 through 300 metric tons.
• Cast alloy steel from 400 through 600 metric tons.
• Proof tested as follows:
  • 75 metric tons and 200-300 metric tons: 2 x WLL
  • 125 metric tons: 1.6 x WLL
  • 400-600 metric tons: 2 x WLL
• All ratings are in metric tons, embossed on side of bow.
• G-2160E, (75t and larger), bows are furnished Dimetcoted, and pins are Dimetcoted, then painted red.
• Approved for use at -40° F (-40° C) to 400° F (204° C).
• Bow and bolt are certified to meet Charpy impact testing of 42 Joules (31 ft-lb) min. avg. at -20° C (-4 degrees F).
• All 2160E shackles are individually proof tested and magnetic particle inspected. Crosby certification available at time of order.
• Shackles requiring ABS, Lloyds and other certifications are available upon special request and must be specified at time of order.
• Shackles have DNV Type Approval to Rules for Certification of Lifting Appliances, and are produced in accordance with DNV MSA requirements. Databook is provided that includes required documents.
  • Serialization / Identification
  • Material Testing (physical / chemical / Charpy)
  • Proof Testing
• Look for the Red Pin®… the mark of genuine Crosby quality.
