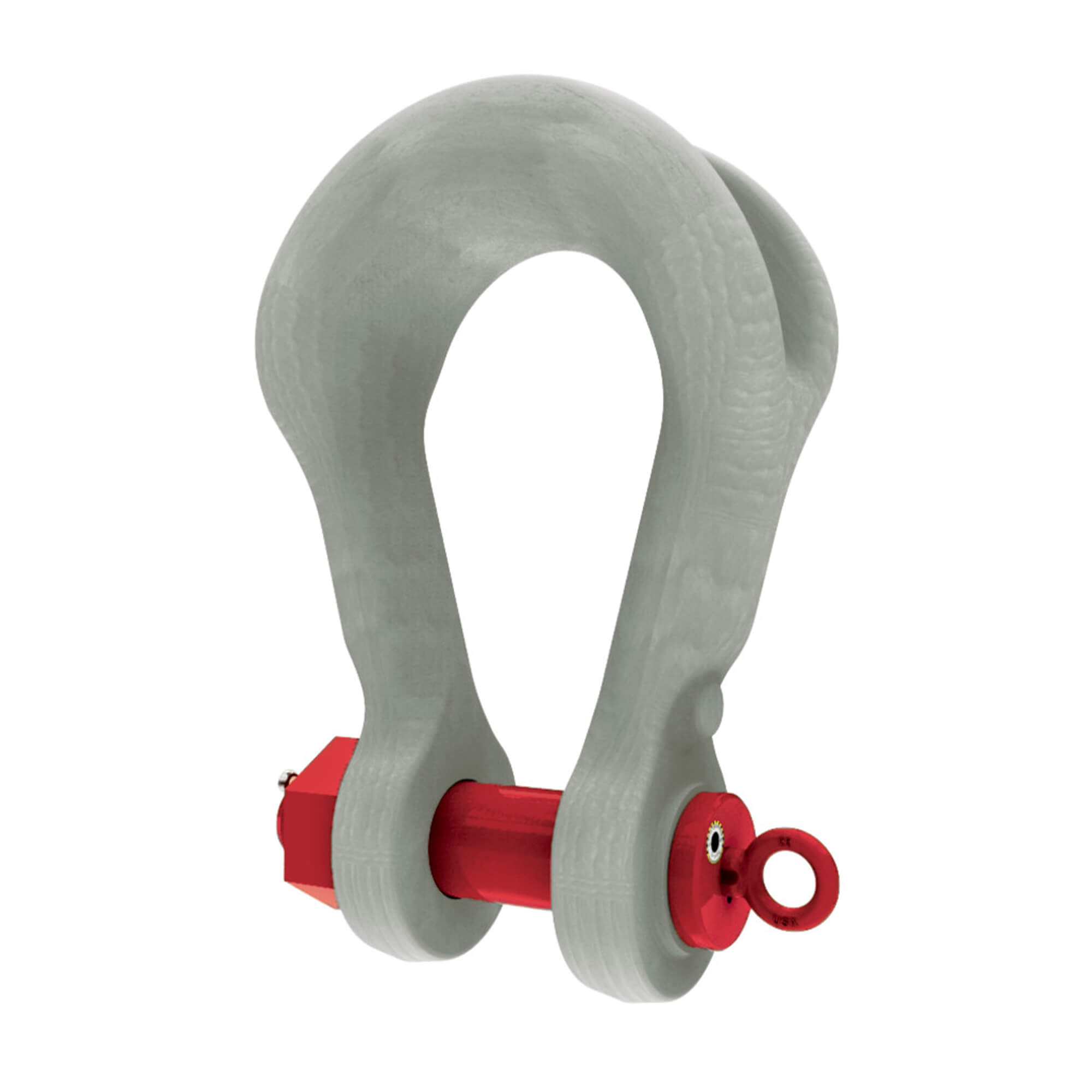

Product details for the Crosby G-2160 Wide Body Shackles

• All sizes are Quenched and Tempered for maximum strength.
• Increases usable sling strength a minimum of 15% and greatly improves life of wire rope slings.
• Can be used to connect synthetic web slings, synthetic round slings or wire rope slings.
• All sizes Quenched & Tempered for maximum strength.
• Forged alloy steel from 7 through 300 metric tons.
• Sizes 7t – 55t are Hot Dip Galvanized and pins are painted red.
• Proof tested as follows:
  • 7 through 75 metric tons and 200 through 300 metric tons: 2 x WLL
  • 125 metric tons: 1.6 x WLL
  • 400 metric tons to 800t : 2 x WLL
  • 1000 metric tons to 2000t: 1.5 x WLL
• All ratings are in metric tons, embossed on side of bow.
• G-2160, (7 through 55t), are hot-dip galvanized and pins are painted red.
• G-2160 (75t and larger), bows are furnished Dimetcoted; Pins are Dimetcoted, then painted red.
• Approved for use at -40° C (-40° F) to 204° C (400° F).
• Bow and bolt are certified to meet Charpy impact testing of 42 Joules (31 ft-lb) min. avg. at -20° C (-4° F).
• All 2160 shackles are individually proof tested and magnetic particle inspected. Crosby certification available at time of order.
• Shackles requiring ABS, Lloyds and other certifications are available upon special request and must be specified at time of order.
• Type approved and certification to DNV Rules for Certification of Lifting Appliances, and are produced in accordance with DNV MSA requirements. Databook is provided that includes required documents.
  • Serialization / Identification
  • Material Testing (physical / chemical / Charpy)
  • Proof Testing
• Look for the Red Pin®… the mark of genuine Crosby quality.
• All Crosby 2160 shackles are capable of inline bow to bow assembly.
