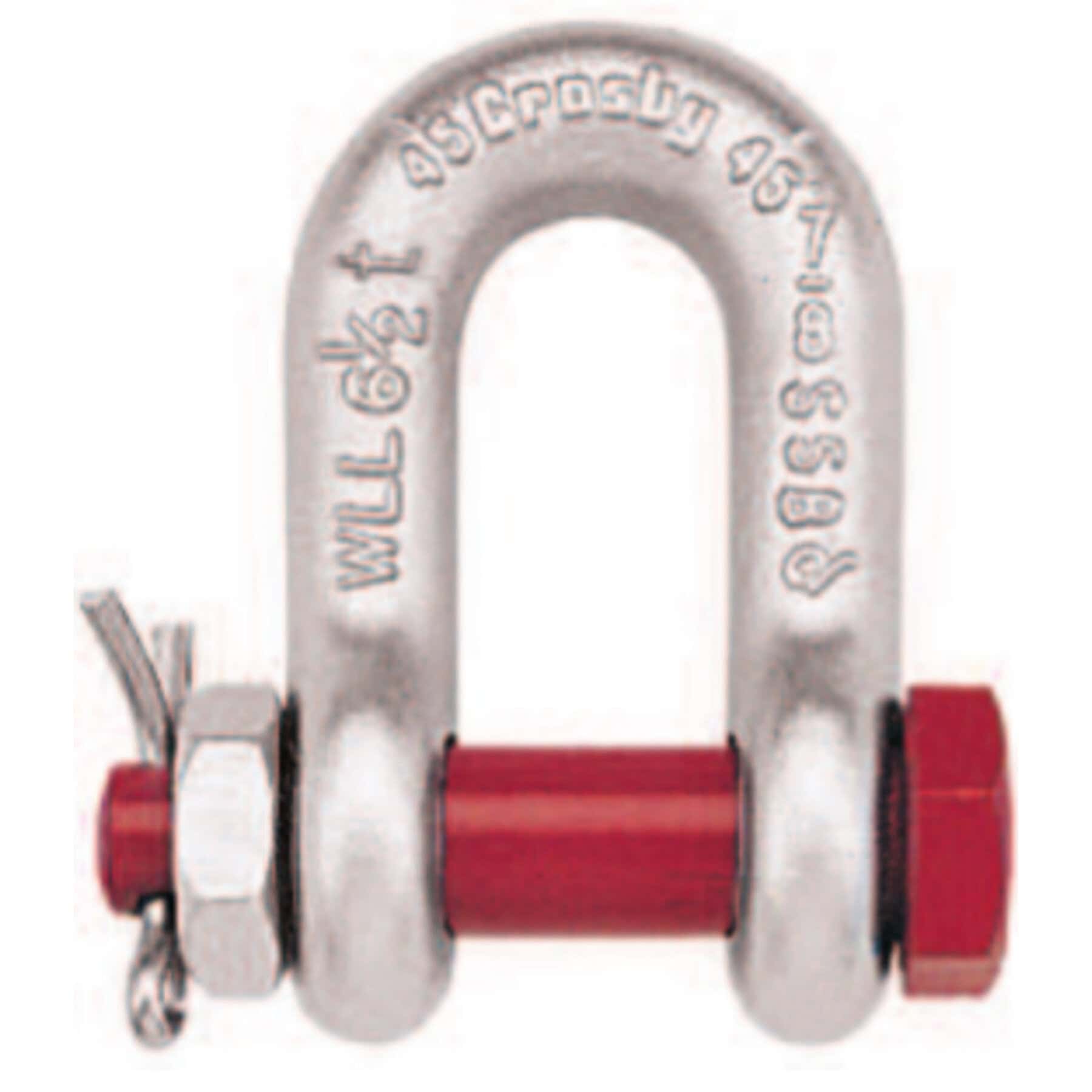

Crosby G-2150 Bolt Type Chain Shackles

Crosby G-2150 Bolt Type Chain Shackles

Product details for the Crosby G-2150 Bolt Type Chain Shackles

• Working Load Limit and Grade 6 permanently shown on every shackle.
• Forged, Quenched & Tempered, with alloy pins.
• Hot-dip galvanized. 85 ton shackles have hot-dip galvanized bows and the bolts are Dimetcoted® and painted red.
• Sizes 3/8 inch and below are mechanically galvanized.
• Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit. (1/2t – 55t).
• Approved for use at -40° F (-40° C) to 400° F (204° C).
• Meets or exceeds all requirements of ASME B30.26.
• Sizes 1/2 – 25t meet the performance requirements of EN13889:2003.
• Shackles 55 metric tons and smaller can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification when requested at time of order.
• Type Approval certification in accordance with ABS Marine Vessel Rules, ABS Mobile Offshore Units, and ABS Guide for the Certification of Lifting Appliances available. Certificates available when requested at time of order and may include additional charges.
• Meets the performance requirements of Federal Specification RR-C-271, Type IVB, Grade A, Class 3, except for those provisions required of the contractor.
• All 2150 shackles can meet charpy requirements of 31 ft-lb (42 Joules) avg at -4° F (-20° C) upon special request.
• Look for the Red Pin®… the mark of genuine Crosby quality.

Remember to follow guidelines set out by the HSE
